DGS-1210-16
$195.00
Add

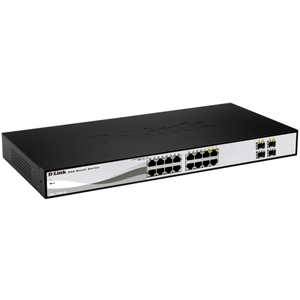

D-LINK - 16PORT SWITCH GBE WEBSMART 10/100/1000 WITH 4 COMBO SFP (DGS-1210-16).
KEY FEATURES :
DEVICE TYPE : SWITCH - MANAGED
ENCLOSURE TYPE : EXTERNAL - 1U
BUILT-IN DEVICES : LED PANEL
NETWORKING :
PORTS QTY : 16 X ETHERNET 10BASE-T, ETHERNET 100BASE-TX, ETHERNET 1000BASE-T
DATA TRANSFER RATE : 1 GBPS
DATA LINK PROTOCOL : ETHERNET, FAST ETHERNET, GIGABIT ETHERNET
REMOTE MANAGEMENT PROTOCOL : SNMP 1, SNMP 2, TELNET, HTTP, TFTP
CONNECTIVITY TECHNOLOGY : WIRED
COMMUNICATION MODE : HALF-DUPLEX, FULL-DUPLEX
SWITCHING PROTOCOL : ETHERNET
MAC ADDRESS TABLE SIZE : 8K ENTRIES
STATUS INDICATORS : LINK ACTIVITY, PORT TRANSMISSION SPEED, POWER, LINK OK
FEATURES : FLOW CONTROL, FULL DUPLEX CAPABILITY, LAYER 2 SWITCHING, DHCP SUPPORT, AUTO-NEGOTIATION, BOOTP SUPPORT, RARP SUPPORT, ARP SUPPORT, VLAN SUPPORT, AUTO-UPLINK (AUTO MDI/MDI-X), IGMP SNOOPING, SYSLOG SUPPORT, PORT MIRRORING, WEIGHTED ROUND ROBIN (WRR) QUEUING, STORE AND FORWARD, MAC ADDRESS FILTERING, BROADCAST STORM CONTROL, MULTICAST STORM CONTROL, UNICAST STORM CONTROL, FIRMWARE UPGRADABLE, SNTP SUPPORT, SPANNING TREE PROTOCOL (STP) SUPPORT, ACCESS CONTROL LIST (ACL) SUPPORT, QUALITY OF SERVICE (QOS), DHCP SERVER, SAFEGUARD ENGINE
COMPLIANT STANDARDS : IEEE 802.3, IEEE 802.3U, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.1W, IEEE 802.1X
POWER :
POWER DEVICE : POWER SUPPLY - INTERNAL
VOLTAGE REQUIRED : AC 120/230 V ( 50/60 HZ )
POWER CONSUMPTION OPERATIONAL : 17.4 WATT
EXPANSION / CONNECTIVITY :
EXPANSION SLOTS TOTAL (FREE) : 4 ( 4 ) X SFP (MINI-GBIC)
INTERFACES : 16 X NETWORK - ETHERNET 10BASE-T/100BASE-TX/1000BASE-T - RJ-45
CONDITION : NEW RETAIL FACTORY SEALED.
