HOME > NETWORKING > SWITCH > 8 PORT > CISCO > WS-C3560CG-8TC-S

- Item Image -
** Image may not exactly match product **

Click For Large Image
Zoom

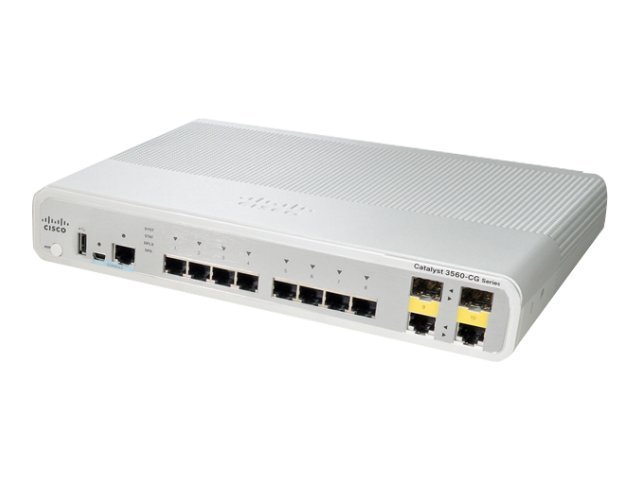

WS-C3560CG-8TC-S - CISCO - CATALYST COMPACT 3560CG-8TC-S SWITCH - 8 PORTS - MANAGED (WS-C3560CG-8TC-S). NEW FACTORY SEALED. IN STOCK.

Original Item Select Quantity Cost
WS-C3560CG-8TC-S $650.00
CISCO - CATALYST COMPACT 3560CG-8TC-S SWITCH - 8 PORTS - MANAGED (WS-C3560CG-8TC-S).

SPECIFICATIONS :
  • DEVICE TYPE : SWITCH - 8 PORTS - MANAGED
  • ENCLOSURE TYPE : DESKTOP - 1U
  • PORTS : 8 X 10/100/1000 + 2 X SHARED SFP
  • PERFORMANCE : FORWARDING PERFORMANCE (64-BYTE PACKET SIZE) : 13.2 MPPS FORWARDING PERFORMANCE : 10 GBPS
  • CAPACITY : VIRTUAL INTERFACES (VLANS) : 255
  • JUMBO FRAME SUPPORT : 9018
  • ROUTING PROTOCOL : OSPF, RIP-1, RIP-2, BGP, OSPFV2, OSPF FOR IPV6
  • REMOTE MANAGEMENT PROTOCOL : SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, TELNET, SNMP 3, SNMP 2C, HTTP, CLI
  • AUTHENTICATION METHOD : KERBEROS, SECURE SHELL (SSH), RADIUS, TACACS+
  • FEATURES : DHCP SUPPORT, AUTO-NEGOTIATION, BOOTP SUPPORT, ARP SUPPORT, VLAN SUPPORT, AUTO-UPLINK (AUTO MDI/MDI-X), IGMP SNOOPING, SYSLOG SUPPORT, DIFFSERV SUPPORT, BROADCAST STORM CONTROL, IPV6 SUPPORT, MULTICAST STORM CONTROL, UNICAST STORM CONTROL, SPANNING TREE PROTOCOL (STP) SUPPORT, DHCP SNOOPING, DYNAMIC TRUNKING PROTOCOL (DTP) SUPPORT, PORT AGGREGATION PROTOCOL (PAGP) SUPPORT, TRIVIAL FILE TRANSFER PROTOCOL (TFTP) SUPPORT, ACCESS CONTROL LIST (ACL) SUPPORT, QUALITY OF SERVICE (QOS), DYNAMIC ARP INSPECTION (DAI), STP ROOT GUARD, UNI-DIRECTIONAL LINK DETECTION (UDLD), FANLESS, DHCP RELAY, REMOTE SWITCH PORT ANALYZER (RSPAN)
  • COMPLIANT STANDARDS : IEEE 802.3, IEEE 802.3U, IEEE 802.3Z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.1W, IEEE 802.1X, IEEE 802.1S, IEEE 802.1AE, IEEE 802.1AB (LLDP), IEEE 802.3AT
  • RAM : 128 MB
  • FLASH MEMORY : 64 MB

    EXPANSION / CONNECTIVITY :
  • INTERFACES : 10 X 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - POE USB : 1 X 4 PIN USB TYPE A 1 X CONSOLE - MINI-USB TYPE B - MANAGEMENT 1 X RS-232 - RJ-45 - MANAGEMENT 2 X SFP (MINI-GBIC)

    POWER :
  • POWER DEVICE : POWER SUPPLY - INTERNAL
  • VOLTAGE REQUIRED : AC 120/230 V ( 50/60 HZ )

    CONDITION : NEW FACTORY SEALED.
    AVAILABILITY : IN STOCK.
    OUR WARRANTY : 30 DAYS.
