1 Product(s) Found

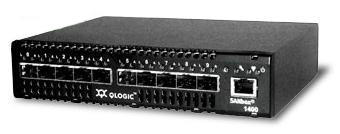

SB1404-10AJ-E QLOGIC NETWORKING SWITCH 10 PORT

- Item Image -

SB1404-10AJ-E - QLOGIC - SANBOX 1400 4GB PT 1 PS 10 SFP (SB1404-10AJ-E). NEW RETAIL. IN STOCK.
Original Item Select Quantity Cost
SB1404-10AJ-E $2,500.00
QLOGIC - SANBOX 1400 4GB PT 1 PS 10 SFP (SB1404-10AJ-E).

KEY FEATURES :
  • TYPE : FIBRE CHANNEL SWITCH
  • MANAGED DEVICE : MANAGED

    NETWORKING :
  • PORTS QTY : 10
  • DATA TRANSFER RATE : 4.24 GBPS
  • DATA LINK PROTOCOL : 4GB FIBRE CHANNEL
  • FIBRE CHANNEL : FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-SW-2, FC-TAPE, FC-VI
  • REMOTE MANAGEMENT PROTOCOL : SNMP, TELNET
  • CONNECTIVITY TECHNOLOGY : WIRED
  • COMMUNICATION MODE : FULL-DUPLEX
  • STATUS INDICATORS : LINK ACTIVITY, POWER, FAIL
  • FEATURES : FULL DUPLEX CAPABILITY, AUTO-SENSING PER DEVICE, AUTO-NEGOTIATION, MANAGEABLE

    EXPANSION / CONNECTIVITY :
  • EXPANSION SLOTS TOTAL (FREE) : 10 ( 0 ) X SFP (MINI-GBIC)
  • INTERFACES : 1 X MANAGEMENT - ETHERNET 10BASE-T/100BASE-TX - RJ-45

    POWER :
  • POWER DEVICE : POWER ADAPTER - EXTERNAL
  • VOLTAGE REQUIRED : AC 120/230 V ( 50/60 HZ )
  • POWER CONSUMPTION OPERATIONAL : 25 WATT

    DIMENSIONS :
  • RACK MOUNTING HEIGHT : 1U
  • WIDTH : 7.5 IN
  • DEPTH : 6.1 IN
  • HEIGHT : 1.7 IN
  • WEIGHT : 2.4 LBS

    PRODUCT DESCRIPTION :
    SIMPLE WIZARDS LEAD YOU THROUGH THE INSTALLATION AND CONFIGURATION OF A SAN, PROVIDING CONVENIENT ACCESS TO ALL YOUR QLOGIC SWITCHES AND HBAS, AND ALLOWING YOU TO PROVISION YOUR VDS COMPLIANT STORAGE AT THE SAME TIME. INCREDIBLY LOW COST AFFORDABLE AND EXTREMELY EASY TO USE, THE ENTRY LEVEL SANBOX SB1404 ALLOWS THE SMALLEST BUSINESS TO ENJOY THE BENEFITS OF NETWORKED STORAGE WITHOUT HAVING TO HIRE A SAN EXPERT. THE SANBOX SB1404 IS A SPACE SAVER, REQUIRING JUST HALF A RACK SLOT. TWO UNITS CAN BE PLACED IN A SINGLE SLOT FOR A TOTAL OF 20 PORTS IN 1U MAXIMUM PORT DENSITY AND POWER WITH MINIMUM INVESTMENT.

    CONDITION : NEW RETAIL.
    AVAILABILITY : IN STOCK.
    WARRANTY : MANUFACTURER WARRANTY.
    		•
