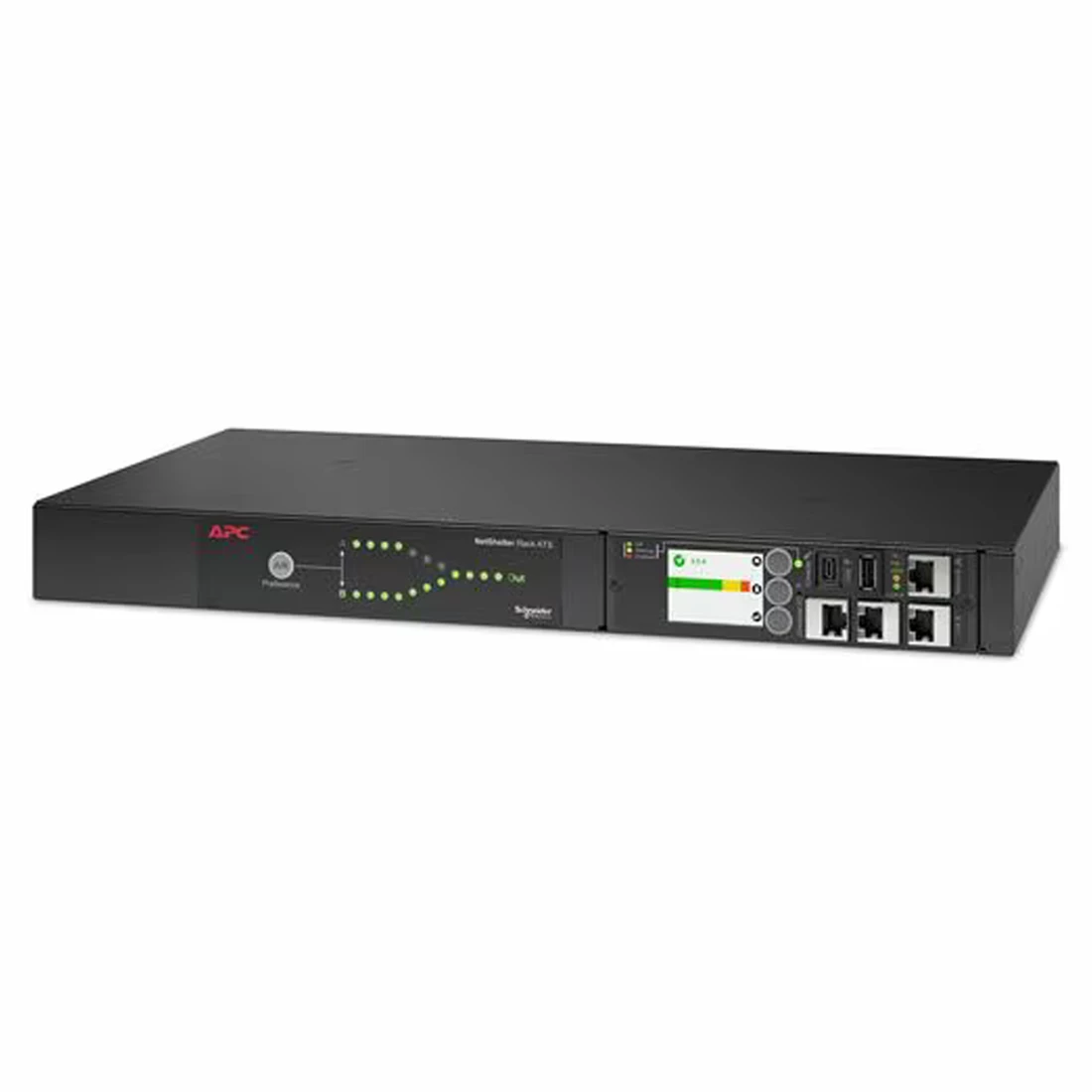

APC AP4423A NetShelter Rack Automatic Transfer Switch 1U 16A 230V 2 C20 IN 8 C13 1 C19 OUT 50/60Hz

Part Number: AP4423A
BRAND: APC | More ACCESSORIES from APC
$1,850.00
Capacity: RACK MOUNT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

APC AP4423A Netshelter Rack Automatic Transfer Switch 1u 16a 230v 2 C20 In 8 C13 1 C19 Out 50/60hz

Specifications

Main

  • Main Input Voltage - 230 V Ac 1 Phase
  • Product Or Component Type - Automatic Transfer Switch
  • Main Output Voltage - 230 V Ac 1 Phase
  • Input Connection Type - Iec 60320 C20 16 A 2p+e
  • Number Of Rack Unit - 1u
  • Provided Equipment:
    - Mounting Hardware
    - Rack Mounting Brackets

    Physical
  • Color - Black
  • Height - 1.73 In (4.4 Cm)
  • Width - 17.01 In (43.2 Cm)
  • Depth - 9.29 In (23.6 Cm)
  • Net Weight - 8.25 Lb(us) (3.74 Kg)
  • Mounting Location - Front
  • Mounting Preference - No Preference
  • Mounting Mode - Rack-mounted
  • Mounting Position - Horizontal

    Input
  • Input Frequency - 50/60 Hz
  • Line Rated Current - 16 A
  • Acceptable Input Voltage - 207…253 V
  • Max Line Current - 20 A
  • Input Current Limits - 20 A
  • Load Capacity - 3700 Va

    Output
  • Number Of Power Socket Outlets :
    - 8 Iec 60320 C13 10 A 2p+e
    - 1 Iec 60320 C19 16 A 2p+e
  • Protection Type - Circuit Breaker
  • Cord Length - 8.005 Ft (2.44 M)

    Conformance
  • Standards
    - En 55022 Class A
    - Fcc Part 15 Class A

    Environmental
  • Ambient Air Temperature For Operation - 23…113 °f (-5…45 °c)
  • Relative Humidity - 5…95 %
  • Operating Altitude - 0...10000 Ft
  • Ambient Air Temperature For Storage - -13…149 °f (-25…65 °c)
  • Storage Relative Humidity - 5…95
  • Storage Altitude - 0…50000 Ft (0…15240 M)

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 90 Days.
