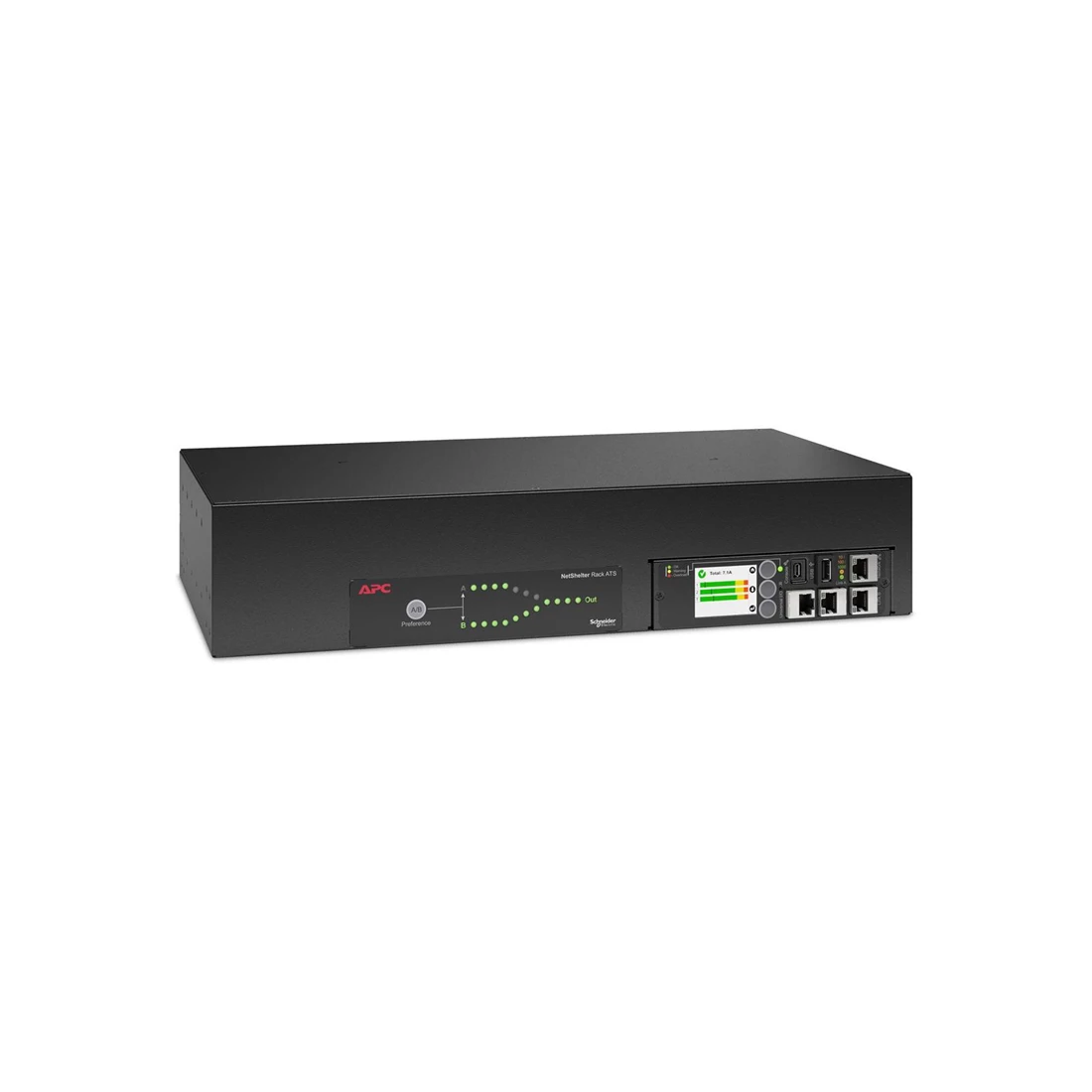

APC AP4432A Netshelter Rack Automatic Transfer Switch 2U 30A 200/208V 2 L6-30 IN 16 C13 2 C19 OUT 50/60Hz
AP4432A
AP4432A
AP4432A
AP4432A
AP4432A

APC AP4432A Netshelter Rack Automatic Transfer Switch 2U 30A 200/208V 2 L6-30 IN 16 C13 2 C19 OUT 50/60Hz

Part Number: AP4432A
BRAND: APC | More ACCESSORIES from APC
$2,350.00
Capacity: RACK MOUNT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

APC AP4432A Netshelter Rack Automatic Transfer Switch 2u 30a 200/208v 2 L6-30 In 16 C13 2 C19 Out 50/60hz

Specifications

Main

  • Main Input Voltage - 200 V Ac 1 Phase 208 V
  • Product Or Component Type - Automatic Transfer Switch
  • Main Output Voltage - 200 V Ac 1 Phase 208 V
  • Input Connection Type - Nema L6-30p 24 A 2p+e
  • Number Of Rack Unit - 2u
  • Cable Length - 8 Ft (2.4 M)
  • Number Of Cables - 2
  • Provided Equipment:
    - Mounting Hardware
    - Rack Mounting Brackets

    Physical
  • Color - Black
  • Height - 3.46 In (8.8 Cm)
  • Width - 17.01 In (43.2 Cm)
  • Depth - 9.29 In (23.6 Cm)
  • Net Weight - 14.51 Lb(us) (6.58 Kg)
  • Mounting Location - Front Rear
  • Mounting Preference - No Preference
  • Mounting Mode - Rack-mounted
  • Mounting Position - Horizontal

    Input
  • Input Frequency - 50/60 Hz
  • Line Rated Current - 30 A
  • Acceptable Input Voltage - 180…220 V
  • Max Line Current - 30 A
  • Input Current Limits - 30 A
  • Load Capacity - 4992 Va

    Output
  • Maximum Total Current Draw Per Phase - 30 A
  • Number Of Power Socket Outlets:
    - 16 Iec 60320 C13 12 A 2p+e
    - 2 Iec 60320 C19 16 A 2p+e
  • Protection Type - Circuit Breaker
  • Cord Length - 8.005 Ft (2.44 M)

    Conformance
  • Product Certifications:
    - Pse
    - Tüv-c
    - Tüv-nurtl

    Environmental
  • Ambient Air Temperature For Operation - 23…113 °f (-5…46 °c)
  • Relative Humidity - 5…95 %
  • Operating Altitude - 0...10000 Ft
  • Ambient Air Temperature For Storage - -13…149 °f (-25…65 °c)
  • Storage Relative Humidity - 5…95
  • Storage Altitude - 0…50000 Ft (0…15240 M)

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
