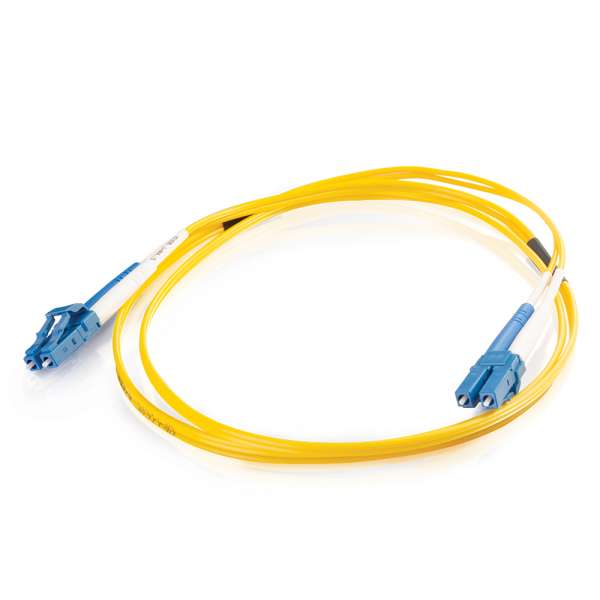

c2g 26264 2m Lc-lc 9/125 Duplex Single Mode Os2 Fiber Cable - Yellow

cost-effective Solution That Provides High Bandwidth And Transmission Rates Over Longer Distances. With Lc To Sc Termination, This High Quality Fiber Optic Patch Cable Is Specifically Designed For Gigabit Ethernet Applications. The Patented Injection Molding Process Provides Each Connection Greater Durability In Resisting Pulls, Strains And Impacts From Cabling Installs.

each Cable Is 100% Optically Inspected And Tested For Insertion Loss Before You Receive It. A Pull-proof Jacket Design Surrounds The Popular 9/125 Single-mode Fiber, Immune To Electrical Interference.

specificaitions

• Lc Connector Dimensions: 10.75mm Height X 12.5mm Width X 50mm Depth (with Installed Duplex Clip)
• Maximum Connector Loss: 0.50 Db
• Typical Connector Loss: 0.30 Db
• Typical Return Loss: -55 Db
• Buffer Material: Pvc
• Buffer Od: 900 Μm
• Jacket Material: Pvc (ofnr Riser-rated)
• Jacket Od: 1.8 Mm


condition : New.
availability : In Stock.
our Warranty : 30 Days.
