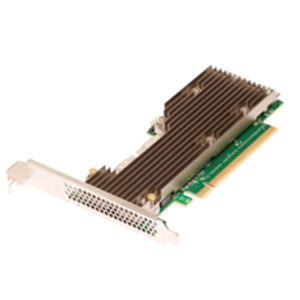

BROADCOM P411W-32P Nvme Switch 12gb/s Pci-e 4.0 X 16 Support Nvme Up To 32 Ssds To The Host

Overview The BROADCOM P411W-32P Is The Industry’s First Fully Managed Gen4 Nvme Switch Adapter, Providing Enterprise Class Options For Nvme
solid State Drive (ssd) Attach Requirements. The P411W-32P Leverages
BROADCOM’S World-class Board Design, Pex88048 Pcie Gen 4 Switch Chip,
and Solid Firmware Expertise, To Provide Advanced Features Not Available
using Traditional Nvme Drive Attach Methods. Similar To BROADCOM Hbas,
the P411W-32P Adapter Is Supplied With Fully Validated And Supported
firmware And Standards Based Out Of Band Manageability Features.
the P411W-32P Switch Adapter Delivers Several Innovative Features,
including True Surprise Add And Removal, Downstream Port Containment
and Read Tracking, Which Can Help The Users Avoid Typical Situations That
could Cause A Kernel Panic. The Integrated Management Processor Delivers
added Features, Such As Ses Compatible Led Control And Bmc Support.

Key Features

Pcie Switch Pex88048

Connectors Four X8 Sff-8654

Storage Interface Pcie (nvme): X4, X2, X1

Host Interface X16 Pcie 4

Form Factor Lp Md2

Physical Dimensions 6.127 In × 2.712 In. (155.90 Mm × 68.90 Mm)

Maximum Operating Conditions Operating: 0°c To 55°c, 5% To 90% Non-condensing Storage: -45°c To +105°c, 5% To 95% Non-condensing

Mtbf >5,000,000 Hours At 40°c

Typical Power 21w

Operating Voltage +12v ±8%, 3.3v ±9%

Applications
• High Performance X4 Nvme Connect
• Application Acceleration Improving Database And Real-time Data Processing

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
