Detail overview

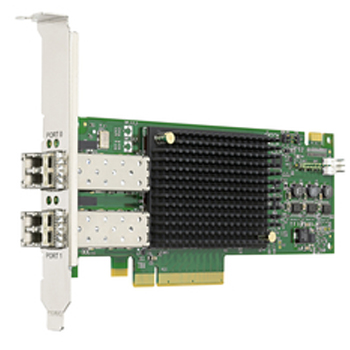

DELL 403-BBMB Emulex Lpe31002-m6-d 16gb Dual Port Pcie Gen3 X8 Fibre Channel Host Bus Adapter

Technical Information :

Cable Support : 100m At 32gb On 50/125 Mm Om4 Mmf, 20m At 32gb On 50/125 Mm Om2 Mmf, 70m At 32gb On 50/125 Mm Om3 Mmf, Operating At 32gb
Optical Data Rates : 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s), 4.25 Gb/s (400 Mb/s) (auto-detected)
Hardware Environment : Powerpc, Sparc, Intel X86, X64
Ports : 2
Optics : Short Wave Lasers With Lc Type Connector Fixed Optics
Host Bus Type : Pcie Gen3 X8
I/o Controller : Xe501
Operating Humidity : 5% To 95% Non-condensing
Os Support : Additional Support Is Available From Oems And Partners, Oracle Solaris, Suse® Linux Enterprise Server, Vmware Vsphere.
Industry Standards : Current Ansi/ietf Standards: Fc-pi-4, Fc-da, Fc-da-2, Fc-fs, Fc-gs-6, Fc-ls-2, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-pi-2, Fc-pi-5, Fcp-4, Fibre Channel Class 3, Legacy Ansi/ietf Standards: Fc-ph, Pcie Base Spec 3.0, Pcie Card Electromechanical Spec 3.0, Php Hot Plug-hot Swap, Sbc-3, Spc-4, Ssc-4
Physical Dimensions : Short, Low Profile Pcie Card, 167.64mm X 68.91mm (6.60” X 2.71”)

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
