Detail overview

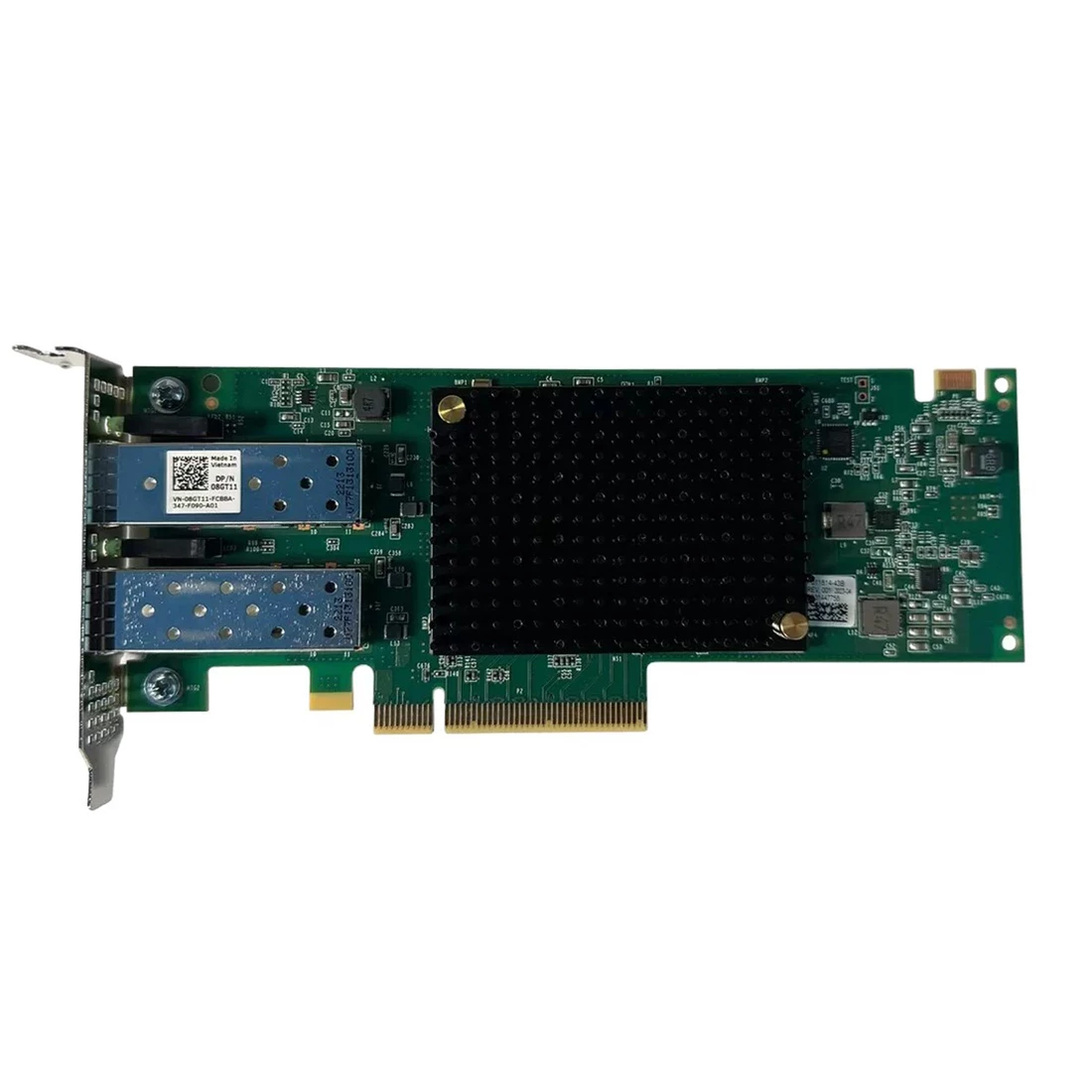

Lpe35002 32gb Dual Port Pcie Gen4 X8 Fiber Channel Host Bus Adapter With Standard Bracket Card Only

Part Number: 4VDY3
Manufacturer: DELL

Technical Specification

* Generation : Gen 7 (64/32gfc)
* Cable Support : 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om4 Mmf, 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om5 Mmf, 0.5m To 70m At 64gfc/32gfc On 50/125 Μm Om3 Mmf, 10 Km At 32gfc/16gfc On 9/125 Μm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used
* Optical Data Rates : 28.05 Gb/s (3200mb/s), 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s) (auto-detected)
* Hardware Environment: Intel X64, Intel X86, And Powerpc
* Ports : 2
* Optics : Optics Short Wave Lasers With Lc Type Connector Optics
* Host Bus Type : Pcie Gen4 X8
* I/o Controller : Xe601
* Operating Humidity: 5% To 95% Non-condensing
* Operating Temperature : 0°c To 55°c
* Storage Temperature : -20° To 85°c (-4° To 185°f)
* Os Support : Additional Support Is Available From Oems And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (uek), Oracle Solaris, Red Hat Enterprise Linux, Suse® Linux Enterprise Server, Vmware Vsphere

Physical Dimensions

167.64mm X 68.91mm (6.60” X 2.71”)

Condition : System Pull Clean Tested
Availability : In Stock
Warranty : 30 Days
