Detail overview

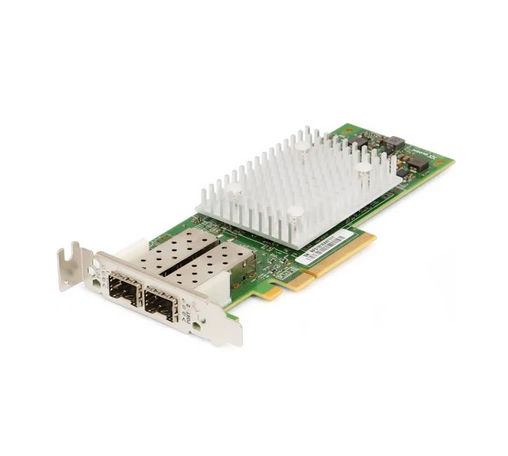

DELL 5H4YH Qle2742l-del Fibre Channel Dual-port 32gb Low Profile Host Bus Adapter

Total Specifications

Bus Interface Pcie 3.0 ×8 (dual-port)

Host Interrupts Intx And Msi-x


• Pci Express Base Specification, Rev. 3.1

• Pci Express Card Electromechanical Specification,rev. 3.0

• Pci Bus Power Management Interface Specification,rev. 1.2

Throughput32gbps Line Rate Per Port (maximum)

Loginssupport For 2,048 Concurrent Logins And 2,048 Active Exchanges Per Port


• Scsi-3 Fibre Channel Protocol (scsi-fcp)

• Fibre Channel Tape (fc-tape) Profile

• Scsi Fibre Channel Protocol-2 (fcp-2)

• Second Generation Fc Generic Services (fc-gs-2)

• Third Generation Fc Generic Services (fc-gs-3)

• Pci Hot Plug Specification, Rev. 1.1

• Fibre Channel-physical Interface-5 (fc-pi-5)

• Fibre Channel-physical Interface-6 (fc-pi-6)

Boot Support Bios, Unified Extensible Firmware Interface (uefi)

Ports Dual-port Fc

Form Factor Low-profile Pcie Card (6.6 Inches × 2.731 Inches)


• Operating: 0°c/32°f To 55°c/131°f

• Storage: –20°c/–4°f To 70°c/158°f


• Relative (noncondensing): 10% To 90%

• Storage: 5% To 95%

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
