Detail overview

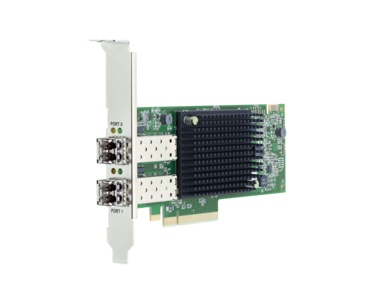

Lpe35002 32gb Dual Port Pcie Gen4 X8 Fiber Channel Host Bus Adapter With Standard Bracket Card Only

Part Number: LPE35002-D
Manufacturer: DELL

Technical Specification :

• Generation : Gen 7 (64/32gfc)
• Cable Support : 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om4 Mmf, 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om5 Mmf, 0.5m To 70m At 64gfc/32gfc On 50/125 Μm Om3 Mmf, 10 Km At 32gfc/16gfc On 9/125 Μm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used
• Optical Data Rates : 28.05 Gb/s (3200mb/s), 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s) (auto-detected)
• Hardware Environment: Intel X64, Intel X86, And Powerpc
• Ports : 2
• Optics : Optics Short Wave Lasers With Lc Type Connector Optics
• Host Bus Type : Pcie Gen4 X8
• I/o Controller : Xe601
• Operating Humidity: 5% To 95% Non-condensing
• Operating Temperature : 0°c To 55°c
• Storage Temperature : -20° To 85°c (-4° To 185°f)
• Os Support : Additional Support Is Available From Oems And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (uek), Oracle Solaris, Red Hat Enterprise Linux, Suse® Linux Enterprise Server, Vmware Vsphere

Physical Dimensions :

• 167.64mm X 68.91mm (6.60” X 2.71”)



Condition : System Pull Clean Tested
Availability : In Stock
Warranty : 30 Days
