Detail overview

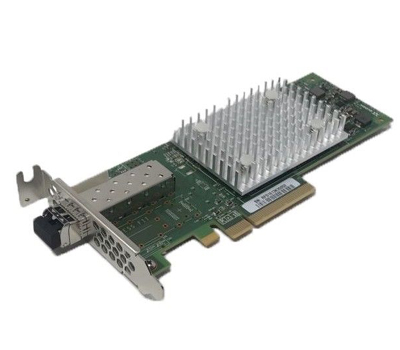

DELL P3T0T Qlogic 2690l 16gb/s Single Port Pci-e 3.0 X8 Sfp+ Fibre Channel Host Bus Adapter

Main Specifications:

Host Bus Interface Specifications

Bus Interface:
• Pci Express(pcie) 3.0 X8

Host Interrupts:
• Intx And Msi-x

• Pci Express Base Specification, Rev. 3.1
• Pci Express Card Electromechanical Specification,rev. 3.0
• Pci Bus Power Management Interface Specification,rev. 1.2

Fibre Channel Specifications

• 16gbps Line Rate Per Port (maximum)

• Support For 2,048 Concurrent Logins And 2,048 Active Exchanges

Port Virtualization:
• N_port Id Virtualization (npiv)

• Scsi-3 Fibre Channel Protocol (scsi-fcp)
• Fibre Channel Tape (fc-tape) Profile
• Bscsi Fibre Channel Protocol-2 (fcp-2)
• Second Generation Fibre Channel Generic Services (fc-gs-2)
• Third Generation Fibre Channel Generic Services (fc-gs-3)
• Fibre Channel Physical Interface 5 (fc-pi5)

Tools And Utilities

Management Tools And Device Utilities:
• Qconvergeconsole: A Unified Management Tool(gui And Cli) That Spans Generations Of Qlogic Fc Adapters
- Vmware Vcenter Server Plug-in
- Vmware Vsphere Tm Web Client Plug-in

Boot Support:
• Bios, Unified Extensible Firmware Interface (uefi)

• Snia Hba Api V2
• Smi-s

Physical Specifications

• Single-port Fc

Form Factor:
• Low-profile Pcie Card (6.6 Inches × 2.731 Inches)

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
