Detail overview

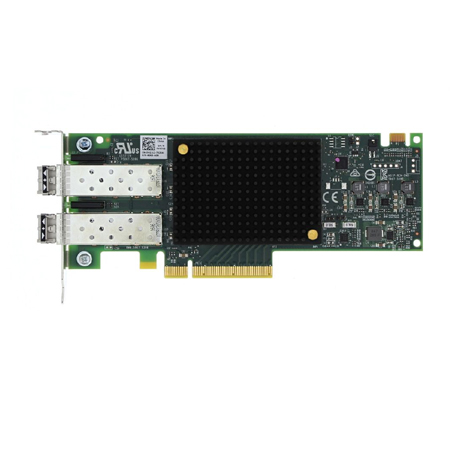

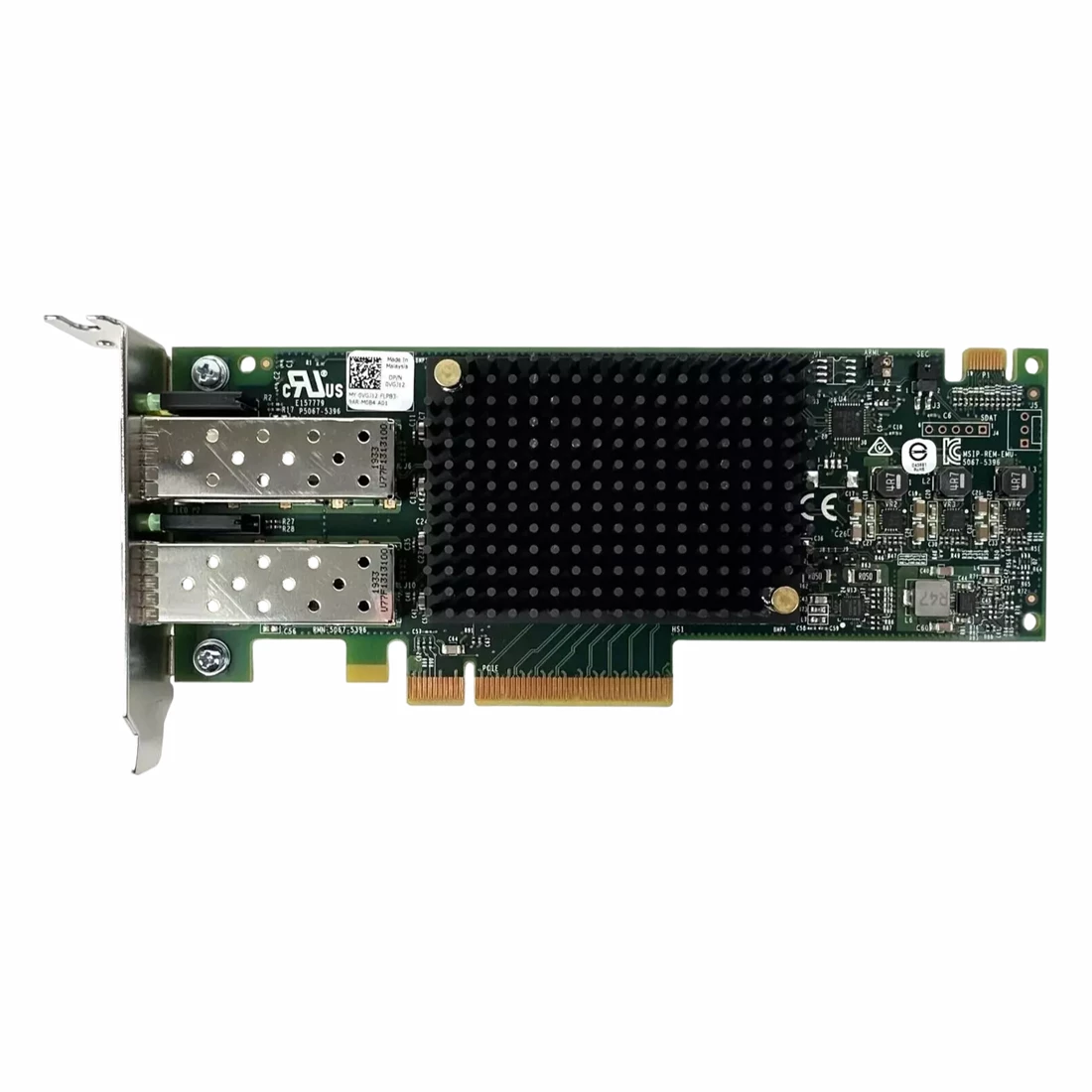

DELL VGJ12 Emulex Lpe31002-m6-d Dual Port 16gb Fibre Channel Hba.


Physical Dimensions Short, Low Profile Pcie Card, 167.64mm X 68.91mm (6.60” X 2.71”)

Cable Support 100m At 32gb On 50/125 Mm Om4 Mmf, 20m At 32gb On 50/125 Mm Om2 Mmf, 70m At 32gb On 50/125 Mm Om3 Mmf, Operating At 32gb

Optical Data Rates 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s), 4.25 Gb/s (400 Mb/s) (auto-detected)

Hardware Environment Powerpc, Sparc, Intel X86, X64

Ports 2

Optics Short Wave Lasers With Lc Type Connector Fixed Optics

Host Bus Type Pcie Gen3 X8

I/o Controller Xe501

Operating Humidity 5% To 95% Non-condensing

Os Support Additional Support Is Available From Oems And Partners, Oracle Solaris, Suse® Linux Enterprise Server, Vmware Vsphere.

Industry Standards Current Ansi/ietf Standards: Fc-pi-4, Fc-da, Fc-da-2, Fc-fs, Fc-gs-6, Fc-ls-2, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-pi-2, Fc-pi-5, Fcp-4, Fibre Channel Class 3, Legacy Ansi/ietf Standards: Fc-ph, Pcie Base Spec 3.0, Pcie Card Electromechanical Spec 3.0, Php Hot Plug-hot Swap, Sbc-3, Spc-4, Ssc-4

Condition : Refurbished.
Availability : In Stock.
our Warranty : 30 Days.
