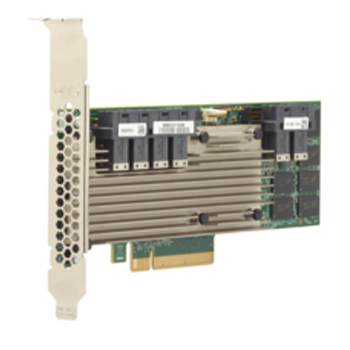

Broadcom 9361-24I SAS 24 Internal Ports RAID 0/1/5/50/6 PCI-EXP 3.0, 4G DDRIII, MD2, No Cbl w/Sw/Lp Bracket
BRAND: BROADCOM | More CONTROLLERS from BROADCOM
$570.00
Capacity: 24 PORT
Quantity :
Product Overview
Connect Up To 240 Sata Or Sas Drives With Eight Internal And Eight External 12gb/s Sas Ports
Provides Internal Storage And Raid Data Protection To Address A Wide Range Of Storage Performance And Capacity Requirements.
Support Critical, High-bandwidth Applications With Pcie® 3.0 Connectivity.
Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60.
Add More Protection And Peace Of Mind Cachevault® Flash Cache Protection
Specifications
Raid-on-chip Controller Sas3324 Dual Core Raid-on-chip (roc)
Generation 12 Gb/s
Raid Management Software Lsa (lsi Storage Authority), Megaraid Storage Manager, Storcli (command-line Interface), Ctrl-r (bios Configuration Utility), Hii (uefi Human Interface Infrastructure)
Cache Protection Cvpm02 Cachevault Power Module
Host Bus Type X8 Lane Pci Express® 3.0
Cache Memory 4gb 2133 Mhz Ddr4 Sdram
Physical Dimensions 6.600 X 2.712
Internal Ports 24
Data Transfer Rates Up To 12gb/s Per Port
Devices Supported Up To 240 Sata And/or Sas Devices
Internal Connectors 6 Mini-sas Hd Sff8643
Operating Temperature Maximum Ambient: Controller Card: 55°c, With Optional Cachevault Accessory Cvpm02 55°c
Operating Voltage(v) +3.3v, +12v
Os Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical, Citrix, Fedora, Debian.
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
BROADCOM 9361-24I Sas 24 Internal Ports Raid 0/1/5/50/6 Pci-exp 3.0, 4g Ddriii, Md2, No Cbl W/sw/lp Bracket.
Overview Data Center, Web, Cloud And High-performance Computing Environments Not Only Require Large Amounts Of Storage Capacity, They Also Must Provide The Data Protection And Performance Today’s Applications And End Users Demand. The Megaraid Sas 9361-24I 12gb/s Sas And Sata Raid Controller Card Addresses These Needs By Delivering Proven Performance And Raid Data Protection For A Range Of Server Storage Applications.
Specifications
Raid-on-chip Controller Sas3324 Dual Core Raid-on-chip (roc)
Generation 12 Gb/s
Raid Management Software Lsa (lsi Storage Authority), Megaraid Storage Manager, Storcli (command-line Interface), Ctrl-r (bios Configuration Utility), Hii (uefi Human Interface Infrastructure)
Cache Protection Cvpm02 Cachevault Power Module
Host Bus Type X8 Lane Pci Express® 3.0
Cache Memory 4gb 2133 Mhz Ddr4 Sdram
Physical Dimensions 6.600 X 2.712
Internal Ports 24
Data Transfer Rates Up To 12gb/s Per Port
Devices Supported Up To 240 Sata And/or Sas Devices
Internal Connectors 6 Mini-sas Hd Sff8643
Operating Temperature Maximum Ambient: Controller Card: 55°c, With Optional Cachevault Accessory Cvpm02 55°c
Operating Voltage(v) +3.3v, +12v
Os Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical, Citrix, Fedora, Debian.
Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
