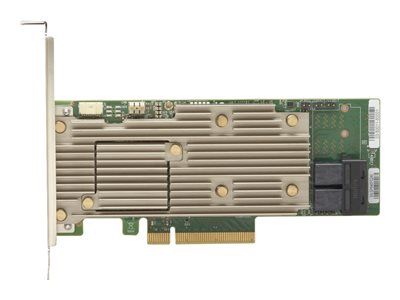

Broadcom 05-50008-02 9440-8I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller F/s

Broadcom 05-50008-02 9440-8I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller F/s

Part Number: 05-50008-02
BRAND: BROADCOM | More CONTROLLERS from BROADCOM
$245.00
Capacity: RAID CONTROLLER

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

BROADCOM 05-50008-02 9440-8i 12gb/s Sas/sata/nvme Tri-mode Pcie Raid Controller.

Overview Small And Medium Businesses (smbs) Deploying Entry-level Server Platforms And Workstations Need Affordable, Reliable Storage Solutions. The Megaraid 9440-8i Tri-mode Storage Adapter Is A 12gb/s Sas/sata/pcie (nvme) Controller Card That Addresses These Needs By Delivering Proven Performance And Raid Data Protection For A Range Of Non-business-critical APPLICATIONS.

BROADCOM’S Tri-mode Serdes Technology Enables The Operation Of Nvme, Sas, Or Sata Devices In A Single Drive Bay, Allowing For Endless Design Flexibility.

  • Connect Up To 63 Sas/sata Devices Or 24* Nvme Devices Per Controller
  • Fits Into Rack-mounted Servers With Low-profile Form Factor And Side-mounted Sas Connectors.
  • Support Critical, High-bandwidth Applications With Pcie® 3.1 Connectivity
  • Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60

    Specifications

    Physical Dimensions Low Profile 6.127” X 2.712”

    Host Bus Type X8 Lane Pci Express® 3.1

    Internal Ports 8

    Raid Management Software Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)

    Data Transfer Rates 12gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.

    Devices Supported Sas/sata: 63, Nvme: 4 X4, Up To 24 X2 Or X4*

    Internal Connectors 2 Mini-sas Hd X4 Sff-8643

    Operating Temperature 10° To 55° C

    Operating Voltage(v) +12v +/-8%, 3.3v +/-9%

    Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver Or Software Support. See WWW.BROADCOM.COM/SUPPORT/DOWNLOAD-SEARCH For Details On Versions.

    I/o Processor / Sas Controller Sas3408 I/o Controller (ioc)

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
