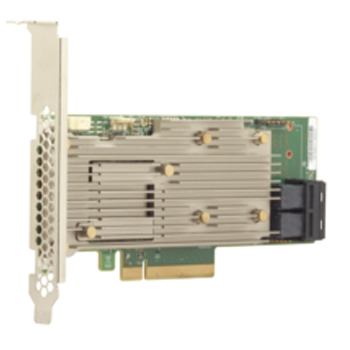

BROADCOM 05-50011-02 12gb/s Sas/sata/nvme Tri-mode Pcie Raid Controller.

Overview

Today’s Data Center, Cloud And High-performance Computing Environments Not Only Require Large Amounts Of Storage Capacity, They Also Must Provide The Data Protection And Performance That Their Applications And End Users Demand. The Megaraid 9460-8i Tri-mode Storage Adapter Is A 12gb/s Sas/sata/pcie (nvme) Controller Card That Addresses These Needs By Delivering Proven Flexibility, Performance And Raid Data Protection For A Range Of Server Storage APPLICATIONS.

BROADCOM’S Tri-mode Serdes Technology Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay, Allowing For Endless Design Flexibility.

• Connect Up To 255 Sas/sata Devices Or 24* Nvme Devices Per Controller

• Fits Into Rack-mounted Servers With Low-profile Form Factor And Side-mounted Sas Connectors.

• Support Critical, High-bandwidth Applications With Pcie® 3.1 Connectivity.

• Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60

• Add More Protection And Peace Of Mind With Cachevault® Flash Cache Protection.

Specifications

Physical Dimensions Low Profile 6.127” X 2.712”

Cache Protection Cachevault Cvpm05

Host Bus Type X8 Lane Pci Express® 3.1

Cache Memory 2gb 2133 Mhz Ddr4 Sdram

Raid Management Software Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)

Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.

Devices Supported Sas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*

Internal Connectors 2 Mini-sas Hd X4 Sff-8643

Operating Temperature 10° To 55° C

Operating Voltage(v) +12v +/-8%, 3.3v +/-9%

Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver Or Software Support. See WWW.BROADCOM.COM/SUPPORT/DOWN-LOAD-SERACH For Details On Versions.

I/o Processor/sas Controller Sas3508 Dual-core Raid-on-chip (roc)

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
