Detail overview

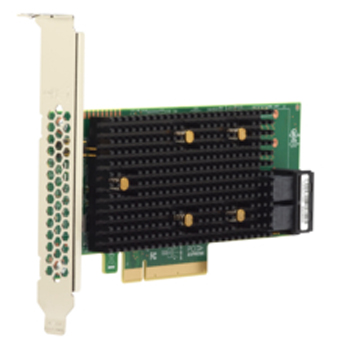

Broadcom 9400-8i 12gb/s Sas/sata/nvme Tri-mode Pcie Hba.

Overview

Designed For High-end Servers Utilizing Internal Storage, The 9400-8i Tri-mode Storage Adapter Is Ideal For Increased Connectivity And Maximum Performance For Data Center Flexibility.

with Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9400-8i Adapter Delivers The Performance And Scalability Needed By Critical Applications.

• Connects Up To 1024 Sas/sata Devices Or 24* Nvme Devices

• Provides Maximum Connectivity And Performance For High-end Servers And Applications

•support Critical Applications With The Bandwidth Of Pcie® 3.1 Connectivity

Specifications

Host Bus Type X8 Lane Pci Express® 3.1

Devices Supported Sas/sata: 1024, Nvme: 24

Internal Connectors 2 Hd Mini-sas Sff8643 (horizontal Mount)

Internal Ports 8

Operating Temperature 10° To 55° C

Operating Voltage +12v +/-8%, 3.3v +/-9%

Os Support Microsoft Windows, Linux, Vmware.

Pci Power Typical: 10.05w

Cable Support Passive Copper

I/o Controller Sas3408

Mtbf > 4,500,000 Hours At 40° C

Operating Humidity 20% To 80% Non-condensing

Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant

Physical Dimensions Low Profile 6.127” X 2.712”

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.






Other Available Condtions for this Part
