Detail overview

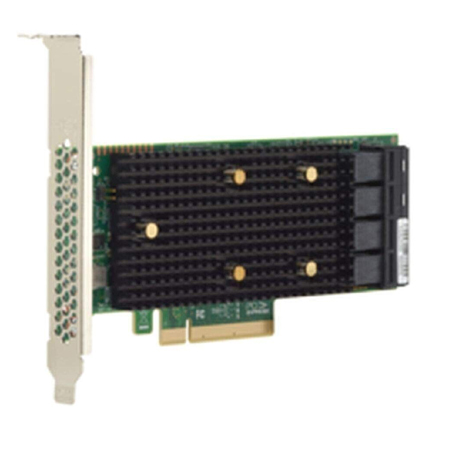

BROADCOM 9400-16I 12gb/s Sas/sata/nvme Tri-mode Pcie Hba.


Designed For High-end Servers Utilizing Internal Storage, The 9400-16I Tri-mode Storage Adapter Is Ideal For Increased Connectivity And Maximum Performance For Data Center Flexibility.

With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9400-16I Adapter Delivers The Performance And Scalability Needed By Critical Applications.

• Connects Up To 1024 Sas/sata Devices Or 24* Nvme Devices

• Provides Maximum Connectivity And Performance For High-end Servers And Applications.

• Support Critical Applications With The Bandwidth Of Pcie® 3.1 Connectivity


Host Bus Type X8 Lane Pci Express® 3.1

Devices Supported Sas/sata: 1024, Nvme: 24

Internal Connectors 4 Mini-sas Hd X4 Sff-8643

Internal Ports 16

Operating Temperature 10° To 55° C

Operating Voltage +12v +/-8%, 3.3v +/-9%

Os Support Microsoft Windows, Linux, Vmware.

Pci Power Typical: 11.95w

Cable Support Passive Copper

I/o Controller Sas3416

Mtbf > > 4,500,000 Hours At 40° C

Operating Humidity 20% To 80% Non-condensing

Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant

Physical Dimensions Low Profile 6.127” X 2.712”

Condition : New Open Box.
Availability : In Stock.
Our Warranty : 30 Days.
