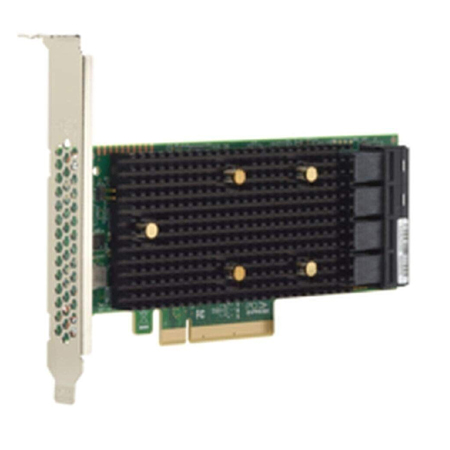

** Image may not exactly match product **
Broadcom SAS9400-16I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBA F/s

Broadcom SAS9400-16I 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBA F/s

Part Number: SAS9400-16I
BRAND: BROADCOM | More CONTROLLERS from BROADCOM
$235.00
Capacity: HOST BUS ADAPTER

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

BROADCOM SAS9400-16I 12gb/s Sas/sata/nvme Tri-mode Pcie Hba

Overview Designed For High-end Servers Utilizing Internal Storage, The 9400-16i Tri-mode Storage Adapter Is Ideal For Increased Connectivity And Maximum Performance For Data Center Flexibility.

With Increased Bandwidth And Iops Performance Compared To Previous Generations, The 9400-16i Adapter Delivers The Performance And Scalability Needed By Critical Applications.

  • Connects Up To 1024 Sas/sata Devices Or 24* Nvme Devices

  • Provides Maximum Connectivity And Performance For High-end Servers And Applications.

  • Support Critical Applications With The Bandwidth Of Pcie® 3.1 Connectivity

    Specifications

    Host Bus Type X8 Lane Pci Express® 3.1

    Devices Supported Sas/sata: 1024, Nvme: 24

    Internal Connectors 4 Mini-sas Hd X4 Sff-8643

    Internal Ports 16

    Operating Temperature 10° To 55° C

    Operating Voltage +12v +/-8%, 3.3v +/-9%

    Os Support Microsoft Windows, Linux, Vmware.

    Pci Power Typical: 11.95w

    Cable Support Passive Copper

    I/o Controller Sas3416

    Mtbf > 4,500,000 Hours At 40° C

    Operating Humidity 20% To 80% Non-condensing

    Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant

    Physical Dimensions Low Profile 6.127” X 2.712”

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
