Detail overview

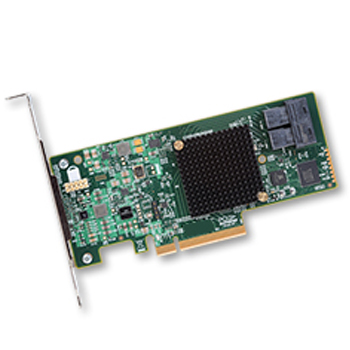

Dell 403-bboz 9311-8i 8-port Internal 12gb/s Sas Pcle 3.0 X8 Host Bus Adapter.

Total Specifications:

Io Controller Sas 3008 Fusion Mpt 2.5

Port Count8 Port, Internal

Connectors
mini Sas Hd
sff8643 Two (x4)

Storage Connectivity Data Transfer Rates 12gb/s Sas 3.0 Compliant

Sas Bandwidth
half Duplex (x8 Wide Bus)
9600 Mb/s

Port Configurations
8 Ea, X1 Ports (individual Drives)
2 Ea, X4 Wide Port

Host Bus X8 Lane, Pcie 3.0

Pci Data Burst Transfer Rates
half Duplex
x8, Pcie 3.0, 8000 Mb/s

Form Factor Low Profile

Physical Dimensions 2.6” X 6.0”

Cable Support Passive Copper

Operating Voltage +12v +/-8%, 3.3v +/-9%

Led Management Reference Sff-8485 (sgpio) Compliant

Pci Power (nominal) 13w

Integrated Raid (ir)
14 Spread Across 2 Volumes
raid 0 10 Per Volume
raid 1 2 Per Volume Plus Hot Spare
raid 1e 10 Per Volume
raid 10 10 Per Volume

Environmental
operating: 0°c To 55°c
storage: -45°c To 105°c
5 To 90% Non-condensing
airflow: 200 Lfm

Mtbf >2,800,000 Hours

Os Support Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware, Freebsd

Condition :refurbished.
Availability :in Stock.
Our Warranty : 30 Days.
