Detail overview

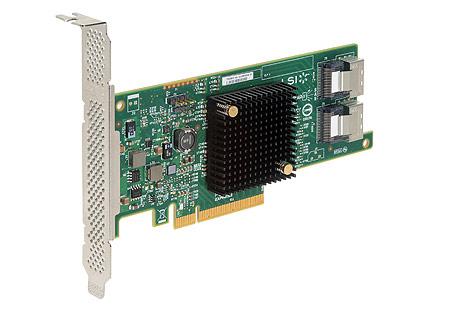

DELL 6gb/s 8port Int Pci-e 3.0 Sata Sas Host Bus Adapter.

Part Number : 406-BBHY
Manufacturer : DELL

Technical Information :

• Product Description : 8port Int 6gb/s Sata+sas Pcie3.0 Hba & Documentation Cd
• Io Controller : lsi Sas2308/ Fusion Mpt 2.0
• Storage Connectivity Data Transfer Rates : 8 Ports 6gb/s Sas 2.1 Compliant
• Sas Bandwidth : half Duplex - 600 Mb/s Per Lane
• Port Configurations : 8 Ea X1 Ports (individual Drives) 2 Ea X4 Wide Port
• Host Bus : X8 Lane Pci Express 3.0 Compliant
• Pci Data Burst Transfer Rates : half Duplex - X8 Pcie 4000 Mb/s
• Physical Dimensions : Low Profile (2.6 X 6.6)
• Connectors : Two Mini-sas Internal Connectors (sff8087)
• Cable Support : Passive Copper
• Pci Card Type : 3.3 V Add-in Card
• Operating Voltage : +12v +/-8 3.3v +/-9



Condition : Refurbished
Availability : In Stock
Warranty : 30 Days
