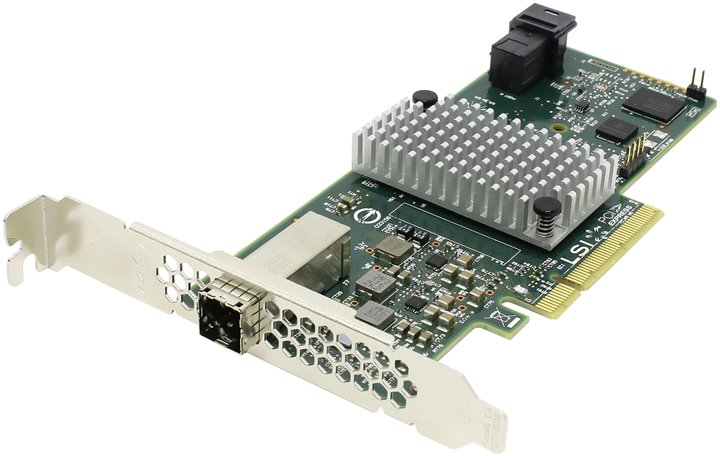

Dell D6d3t 9300-4i4e Single Sas 4 Port 12gb/s Pci-express 3.0 X8 Sas Host Bus Adapter.

Key Features

Host Bus Type X8 Lane Pci Express 3.0

Physical Dimensions Low Profile (2.6” X 6.0”)

Devices Supported 1024 Non-raid Sas/sata Devices

External Connectors1 Mini-sas Hd Sff8644

Fusion Mpt Support Fusion Mpt 2.5

Internal Connectors1 Mini-sas Hd Sff8643

Internal Ports 4

Operating Temperature 0°c To 55°c

Operating Voltage +12v +/-8%, 3.3v +/-9%

Os Supportmicrosoft Windows, Linux (suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver, Installation Of An Lsi Driver Is Not Required.

Pci Power14.2w

Cable Supportpassive Copper, Active Optical (external Only)

I/o Controllerlsi Sas3008

Mtbf > 2,800,000 Hours

Operating Humidity5% To 90% Non-condensing

Data Transfer Rates12gb/s Sas-3 Compliant

Condition : Refurbished.
Availability : In Stock
Our Warranty : 30 Days
