Detail overview

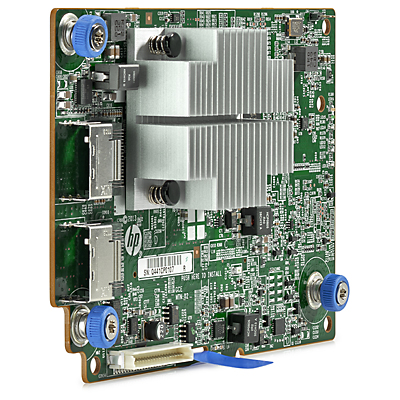

Hpe 749997-001 Smart Array H240ar 12gb/s Dual Port Pci-e 3.0 X8 Sas Smart Host Bus Adapter.

Key Features :

  • Device Type : Storage Controller - Plug-in Module
  • Bus Type : Pcie 3.0 X8
  • Interface : Sata 6gb/s / Sas 12gb/s
  • Channel Qty : 8
  • Data Transfer Rate : 1.2 Gbps
  • Supported Devices : Hard Drive, Solid State Drive
  • Raid Level : Raid 0, Raid 1, Raid 5
  • Designed For : Modular Smart Array 2040, 2040 10gb

    Expansion / Connectivity
    Interfaces :
  • 2 X Sata 6gb/s / Sas 12gb/s - 36 Pin 4i Mini Multilane Sas (sff-8087) (internal)

  • Os Required : Suse Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008,buntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04,
    Microsoft Windows Server 2012 With Hyper-v, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 Update 5.

    Compatibility Information
  • Designed For Hpe Proliant Dl360 Gen9, Dl360 Gen9 Base, Dl360 Gen9 Cms, Dl360 Gen9 Entry, Dl360 Gen9 Performance,dl380 Gen9, Dl380 Gen9 Base, Dl380 Gen9 Entry, Dl380 Gen9 High Performance, Dl380 Gen9 Performance, Dl560 Gen9 Entry, Ml350 Gen9, Ml350 Gen9 Base, Ml350 Gen9 Entry, Ml350 Gen9 Performance

    Condition : Refurbished
    Availability : In Stock
    Our Warranty : 30 Days.
