Detail overview

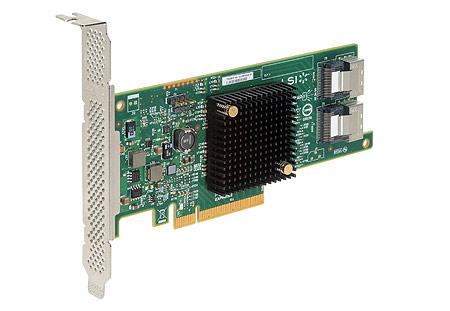

6gb/s 8port Int Pci-e 3.0 Sata Sas Host Bus Adapter

Part Number: H5-25412-00
Manufacturer: Lsi Logic

Technical Information:

Product: 8port Int 6gb/s Sata+sas Pcie3.0 Hba & Documentation Cd
Io Controller : lsi Sas2308/ Fusion Mpt 2.0
Storage Connectivity Data Transfer Rates : 8 Ports 6gb/s Sas 2.1 Compliant
Port Configurations : 8 Ea X1 Ports (individual Drives) 2 Ea X4 Wide Port
Host Bus : X8 Lane Pci Express 3.0 Compliant
Pci Data Burst Transfer Rates : half Duplex - X8 Pcie 4000 Mb/s
Physical Dimensions : Low Profile (2.6 X 6.6)
Connectors : Two Mini-sas Internal Connectors (sff8087)
Brackets : Full Height And Low Profile
Cable Support : Passive Copper
Pci Card Type : 3.3 V Add-in Card
Operating Voltage : +12v +/-8 3.3v +/-9



Condition : Refurbished.
Availability : In Stock
Warranty : 30 Days
