Detail overview

General Information:
Manufacturer : Lsi Logic
Part Number : H5-25460-00

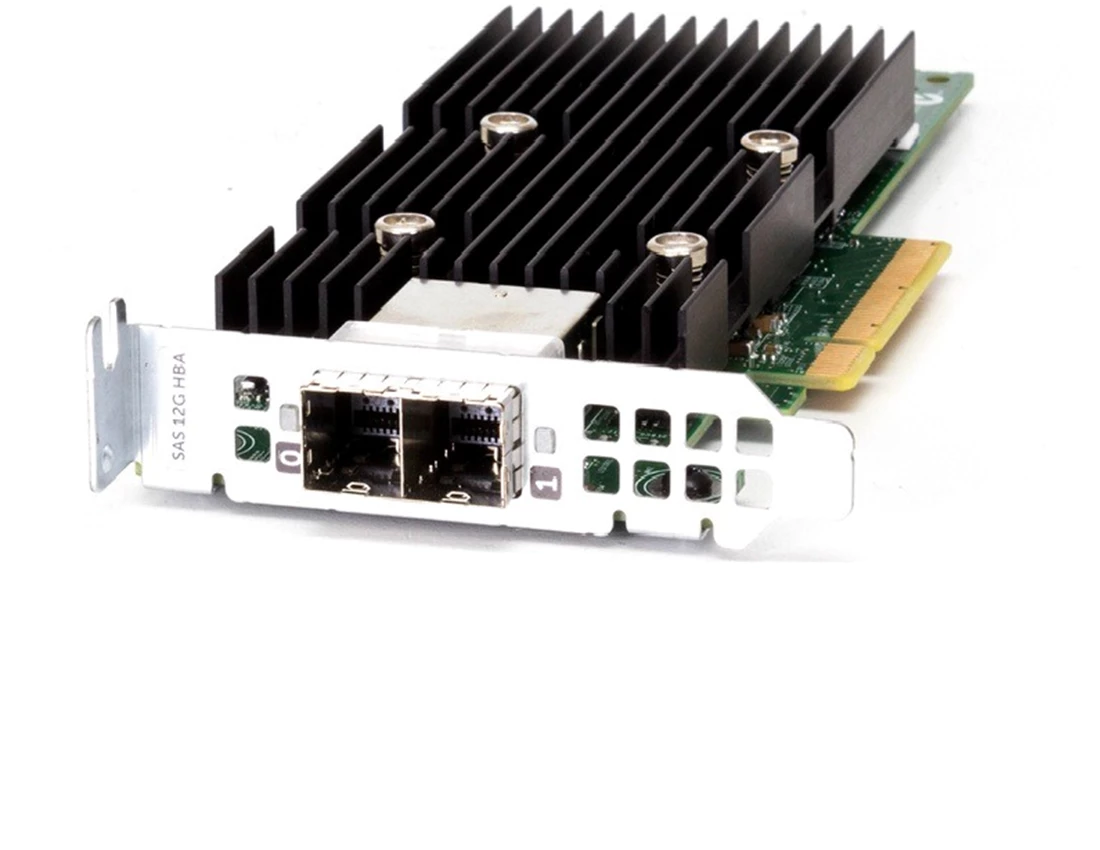

Type : 9300-8e Hba

Features:
Host Bus Type : X8 Lane Pci Express 3.0
Data Transfer Rates : 12gb/s Sas-3 Compliant
Devices Supported : 1024 Non-raid Sas/sata Devices
External Connectors : 2 Mini-sas Hd Sff8644
I/o Controller : Lsi Sas3008
Mtbf : > 2,800,000 Hours
Os Support : Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver, Installation Of An Lsi Driver Is Not Required

Dimensions
Physical Dimensions : Low Profile (2.6” X 6.0”)



Condition : New Factory Sealed.
Availability : In Stock
Our Warranty : 30 Days
