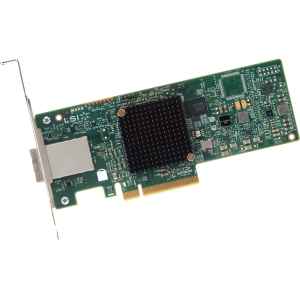

Lsi Logic H5-25460-02e 9300-8e 12gb/s 8port External Pci-express 3.0 X8 Sas Controller.

Overview The Sas 9300 8-port, 12gb/s Sas Host Bus Adapter Family Provides Increased Connectivity And Maximum Performance For High-end Servers And Appliances Within Internal Storage, Or Connecting To Large Scale Storage Enclosures. The Sas 9300 Hba Family Is Based On The Sas 3008 Io Controller, Integrating The Latest Enhancements In Sas And Pci Express Technology. Each Host Bus Adapter Also Supports 8 Sas Ports Operating At 12gb/s Data Transfer Rates, And Can Reach Over 1 Million Iops. The 9300 Adapter Family Supports 8 Pci Express Lanes That Comply With The Latest Pci Express 3.0 Specifications. In Addition, These Adapters Are Backwards Compatible With Previous Sas And Pcie Generations Through Automatic Negotiation, And Provide Sas Data Transfer Rates Of 12, 6, And 3 Gb/s Per Lane, And Sata Data Transfer Rates Of 6 And 3gb/s Per Lane.

Specification

Host Bus Type X8 Lane Pci Express 3.0

Physical Dimensions Low Profile (2.6” X 6.0”)

Devices Supported 1024 Non-raid Sas/sata Devices

External Connectors 2 Mini-sas Hd Sff8644

Fusion Mpt Support Fusion Mpt 2.5

Operating Temperature 0°c To 55°c

Operating Voltage (v) +12v +/-8%, 3.3v +/-9%

Os Support Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver. Installation Of An Lsi Driver Is Not Required.

Pci Power 14.5w

Cable Support Passive Copper, Active Optical

I/o Controller Lsi Sas3008

Mtbf > 2,800,000 Hours

Operating Humidity 5% To 90% Non-condensing

Data Transfer Rates 12gb/s Sas-3 Compliant

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
