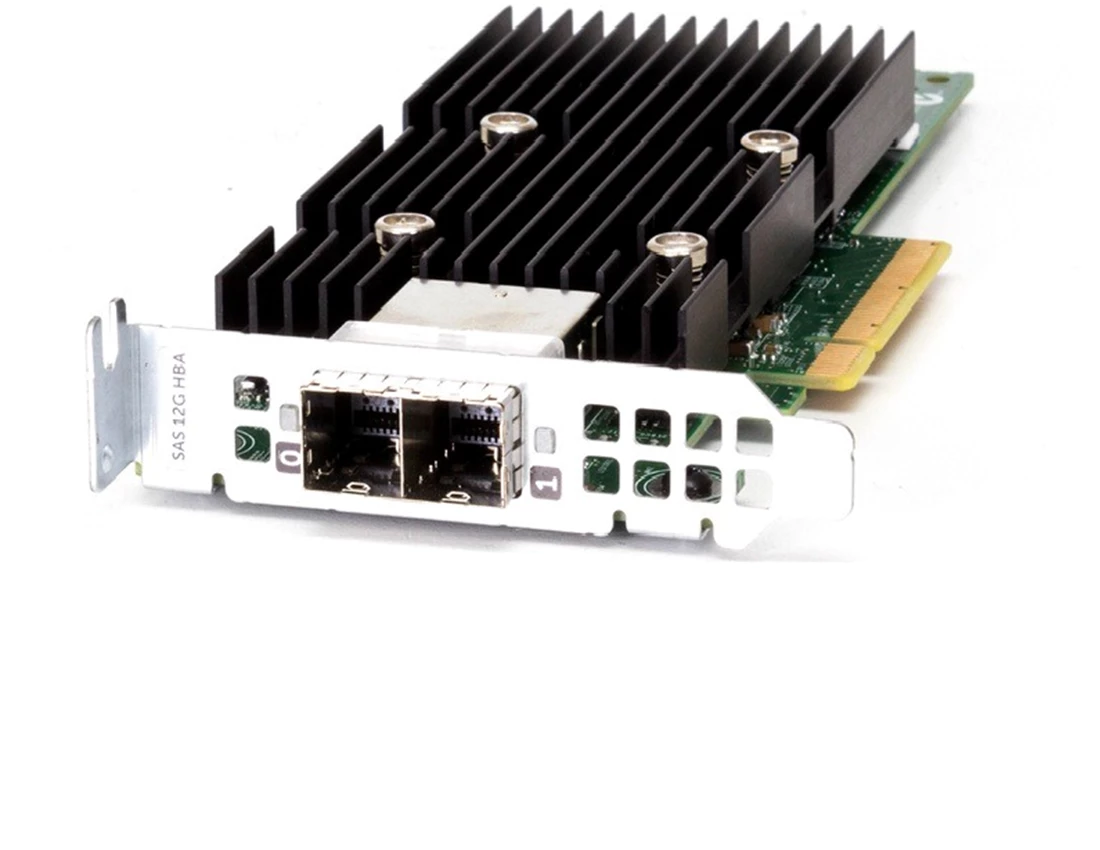

LSI H3-25460-02E 9300-8e 12Gb/s SATA/SAS 8-Port SAS3 PCI-E 3.0 Host Bus Adapter

LSI H3-25460-02E 9300-8e 12Gb/s SATA/SAS 8-Port SAS3 PCI-E 3.0 Host Bus Adapter

Part Number: H3-25460-02E
BRAND: LSI LOGIC | More CONTROLLERS from LSI LOGIC
$130.00
Capacity: PCI-E

Quantity :
Upto 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

Lsi Logic 12gb/s 8-port External Pci-express 3.0 X8 Sas Controller.

Part Number: H3-25460-02E
Manufacturer: Lsi Logic

Overview The Sas 9300 8-port, 12gb/s Sas Host Bus Adapter Family Provides Increased Connectivity And Maximum Performance For High-end Servers And Appliances Within Internal Storage Or Connecting To Large-scale Storage Enclosures. The Sas 9300 Hba Family Is Based On The Sas 3008 Io Controller, Integrating The Latest Enhancements In Sas And Pci Express Technology. Each Host Bus Adapter Also Supports 8 Sas Ports Operating At 12gb/s Data Transfer Rates And Can Reach Over 1 Million Iops. The 9300 Adapter Family Supports 8 Pci Express Lanes That Comply With The Latest Pci Express 3.0 Specifications. In Addition, These Adapters Are Backward Compatible With Previous Sas And Pcie Generations Through Automatic Negotiation And Provide Sas Data Transfer Rates Of 12, 6, And 3gb/s Per Lane, And Sata Data Transfer Rates Of 6 And 3gb/s Per Lane.

Specification

Host Bus Type X8 Lane Pci Express 3.0
Physical Dimensions Low Profile (2.6” X 6.0”)
Devices Supported 1024 Non-raid Sas/sata Devices
External Connectors 2 Mini-sas Hd Sff8644
Fusion Mpt Support Fusion Mpt 2.5
Operating Temperature 0°c To 55°c
Operating Voltage (v) +12v +/-8%, 3.3v +/-9%
Pci Power 14.5w
Cable Support Passive Copper, Active Optical
I/o Controller Lsi Sas3008
Mtbf > 2,800,000 Hours
Operating Humidity 5% To 90% Non-condensing
Data Transfer Rates 12gb/s Sas-3 Compliant

Os Support
Microsoft Windows, Linux (suse, Red Hat), Solaris, Vmware, Freebsd. See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built-in Driver. Installation Of An Lsi Driver Is Not Required.

Condition : Brand New.
Availability : In Stock.
Our Warranty : 90 Days.
