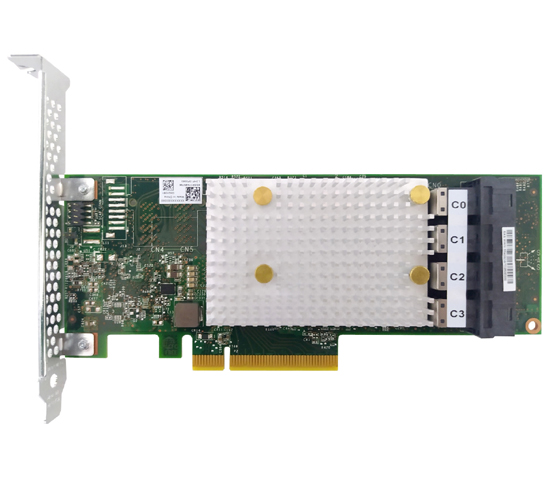

Broadcom 05-26106-00 9341-8i MegaRAID SAS 12GB 8Port PC-E 3.0 SAS SATA RAID Controller

Broadcom 05-26106-00 9341-8i MegaRAID SAS 12GB 8Port PC-E 3.0 SAS SATA RAID Controller

Part Number: 05-26106-00
BRAND: BROADCOM | More CONTROLLERS from BROADCOM
$75.00

$300.00
You Save: $225.00 75% OFF


Capacity: RAID CONTROLLER

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

BROADCOM 05-26106-00 9341-8i Megaraid Sas 12gb 8port Pc-e 3.0 Sas Sata Raid Controller.

Key Features

Physical Dimensions 2.6” X 6.0”

Connectors Two, X4, Sff-8643 Mini-sas Hd Horizontal Connector Placement

Max Number Of Physical Devices

  • Non-raid (jbod Mode): 64
  • Raid 0: 32 Per Volume
  • Raid 1: 2 Per Volume Plus Hot Spare
  • Raid 5: 32 Per Volume
  • Raid 10: 32 Per Volume
  • Raid 50: 32 Per Volume

    Host Bus Type 8-lane, 5 Gt/s Pci Express 3.0 Compliant

    Data Transfer Rates Up To 12gb/s Per Port

    Key Raid Data Protection Features
  • Raid Levels 0, 1, 5, 10, 50 And Jbod Mode
  • Online Capacity Expansion (oce)
  • Online Raid Level Migration (rlm)
  • Auto Resume After Loss Of System Power During Array Rebuild Or Rlm
  • Single Controller Multipathing (load Balancing)
  • Drive Hot Plug Support
  • Drive Roaming
  • Selectable Logical Drive As Boot Drive
  • Virtual Disk (vd) Consistency Check
  • Fast Initialization For Quick Array Setup
  • Staggered Disk Spin Up
  • Hot Spare Support (up To 8)
  • Global, Dedicated (copy Back), Enclosure Affinity And Emergency Sata Support
  • Automatic Rebuild Support
  • Safestore Encryption Services For Sed Hdds
  • Shielded State Drive Diagnostic Technology
  • Patrol Read Media Scan And Repair
  • Online Hdd Firmware Update
  • Error Recovery Support
  • Sas Tcq Support
  • Sata Ncq Support
  • Support For Native 4k Hdds
  • Non-disk Device Support
  • >2tb Logical Drive Support
  • Soft Bad Block Management
  • Ddf-compliant Configuration On Disk
  • Foreign Configuration Import
  • S.m.a.r.t. Support
  • Ses (inband) & Sgpio (sideband) Management

    Megaraid Management Suite
  • Megaraid Storage Manager™
  • Now With Single Login For Domain Admin
  • Storcli (command-line Interface)
  • Ctrl-r (bios Configuration Utility)
  • Hii (uefi Human Interface Infrastructure)

    Environments
  • Operating 0°c To 70°c
  • 5 To 90% Non-condensing
  • Storage -45°c To 105°c
  • 5 To 90% Non-condensing

    Pci Card Type 3.3v Add-in Card

    Pci Voltage +12v +/-8%

    Pci Power 13.0 W (normal), 19.04 W (max)

    Pci Modes Bus Master Dma

    Led Indicators Internal Activity/fault Per X4 Port – Heartbeat

    Mtbf >2,800,000 Hours

    Os Support Extensive Support Includes Microsoft® Windows® Server 2012/vista/2008/server 2003, Linux®, Solaris™ (x86), Freebsd®,
    vmware® And More.

    Condition: Refurbished. (dell Oem).
    Availability: In Stock.
    Our Warranty: 90 Days.
