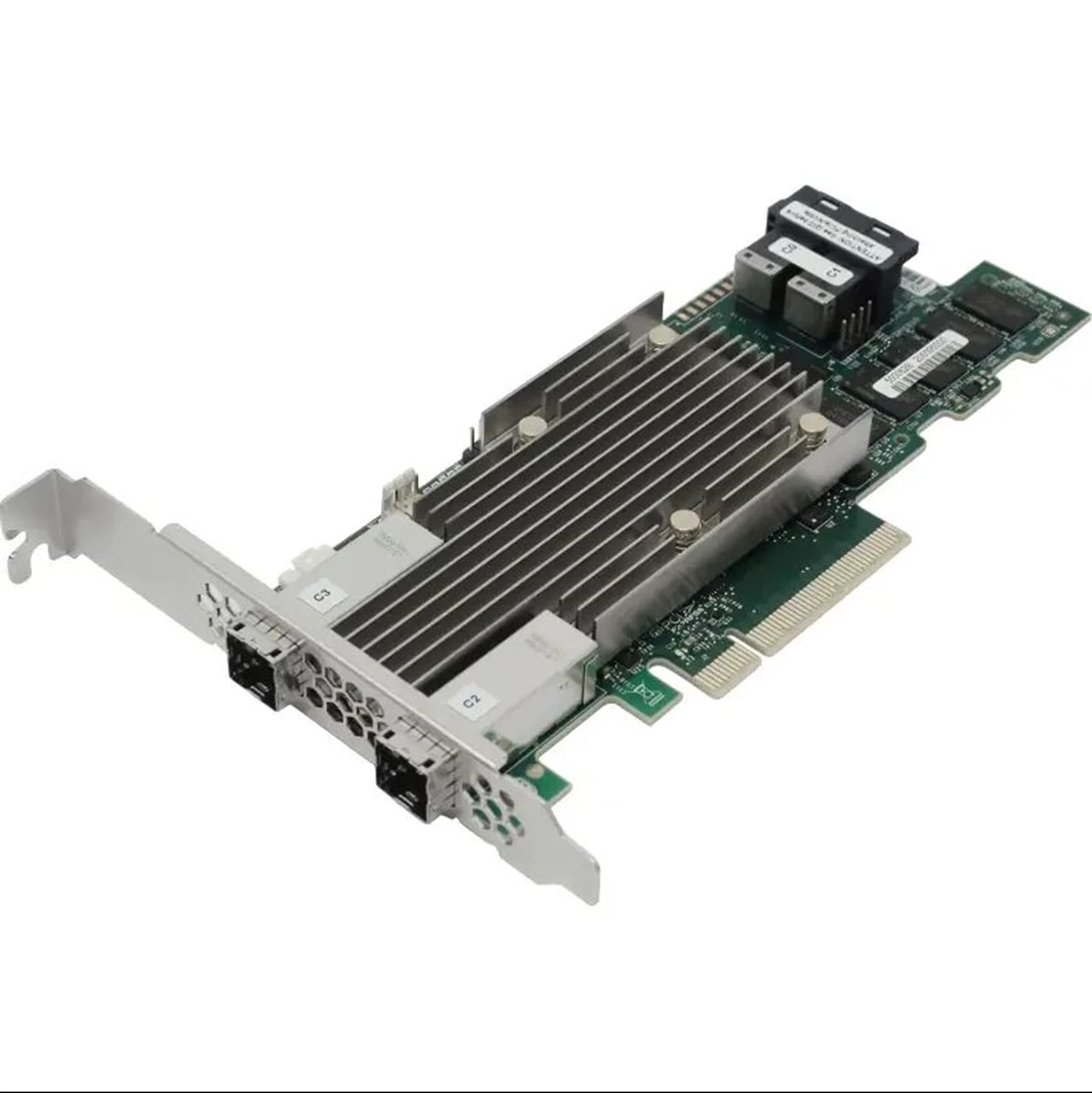

Overview Direct Attached, High-connectivity Applications Require Increased Bandwidth, Increased Iops Performance, And Advanced Data Protection. The Megaraid 9480-8i8e Tri-mode Internal/external Storage Adapter Is A 12gb/s Sas/sata/pcie (nvme) Controller Card That Addresses These Needs By Delivering Internal Connectivity And External Scalability, Proven Flexibility, Performance, And Raid Data Protection For A Range Of Server Storage APPLICATIONS.
BROADCOMS Tri-mode Serdes Technology Enables The Operation Of Nvme, Sas, Or Sata Devices In A Single Drive Bay, Allowing For Endless Design Flexibility.
Connect Up To 255 Sas/sata Devices Or 24* Nvme Devices Per Controller.
Fits Into Rack-mounted Servers With Low-profile Form Factor And Side-mounted Sas Connectors.
Provides Internal Storage, External Jbod Expansion, And Raid Data Protection To Address A Wide Range Of Storage Performance And Capacity Requirements.
Support Critical, High-bandwidth Applications With Pcie® 3.1 Connectivity.
Balance Protection And Performance For Critical Applications With Raid Levels 0, 1, 5, 6, 10, 50, And 60.
Add More Protection And Peace Of Mind With Cachevault® Flash Cache Protection.
Specifications
External Ports 8
External Connectors 2 Mini-sas Hd Sff8644
Raid Management Software Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure)
Cache Protection Cachevault Cvpm05
Host Bus Type X8 Lane Pci Express® 3.1
Cache Memory 2gb 2133 Mhz Ddr4 Sdram
Internal Ports 8
Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant
Devices Supported Ssas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*
Internal Connectors 2 Mini-sas Hd X4 Sff-8643
Operating Temperature 10° To 55° C
Operating Voltage(v) +12v +/-8%, 3.3v +/-9%
Os Microsoft Windows. Contact Oracle Support For Oracle Solaris Driver Or Software Support. See WWW.BROADCOM.COM/SUPPORT/DOWN-LOAD-SEARCH For Details On Versions.
I/o Processor / Sas Controller Sas3516 Dual-core Raid-on-chip (roc)
Physical Dimensions Low Profile 6.127” X 2.712”
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
