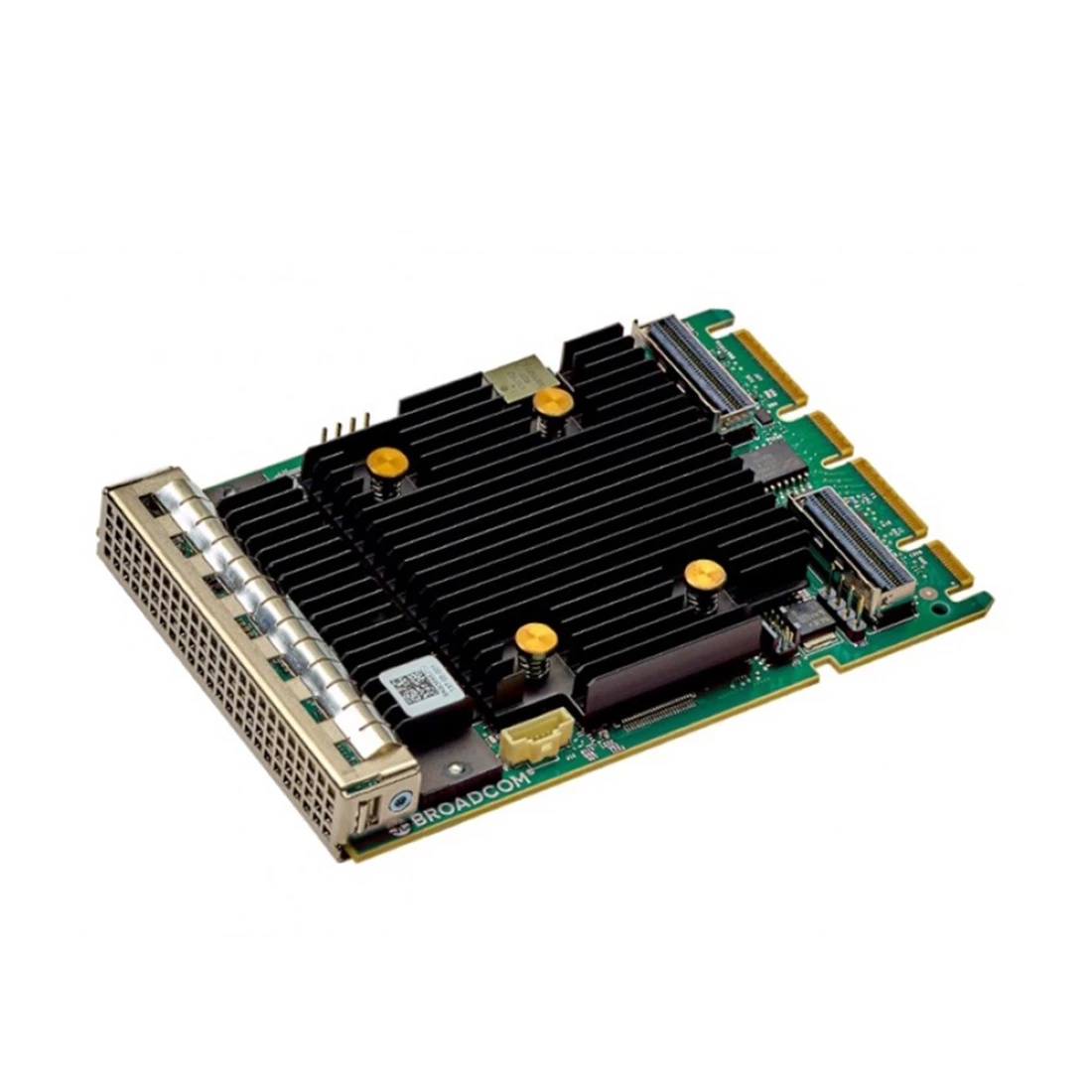

Broadcom 05-50137-00 9562-16i 16-Port Internal 12Gbs TriMode SATA+SAS+PCIe Raid Controller

Part Number: 05-50137-00

Quantity :
| Product Overview

BROADCOM 05-50137-00 9562-16i Megaraid 16-port Internal 12gbps Sata+sas Pcie Gen 4.0 Tri-mode Ocp 3.0 Sff Adapter.

Overview The 16-port Ocp 3.0 Sff Tri-mode 9562-16i Nvme/sas/sata Raid Adapter Enables More Flexibility When Integrating Storage Into The Server

the Ocp Raid Adapter Enables The Operation Of Nvme, Sas Or Sata Devices In A Single Drive Bay. By Using An Ocp Slot For Storage, Users Can Free Up A Standard Pcie Adapter Slot For Other Uses.

  • Connects Up To 1024 Sas/sata Devices Or 32 Nvme Devices
  • Provides Maximum Connectivity And Performance For High-end Servers And Applications
  • Support Critical Applications With The Bandwidth Of Pcie 4.0 Connectivity
  • Universal Bay Management (ubm) Ready
  • Sff-9402 Compliant Connector Pinout


    Ports: 16 Internal

    I/o Processor: Sas3916

    Form Factor: Ocp Nic 3.0 Sff

    Storage Interface Connectors: Two Sff-8654 X8 (vertical)

    Host Interface: X8 Pcie 4.0

    Storage Interface: Sas, Sata, And Pcie (nvme)

    Cache Memory: 8 Gb, 2666 Mt/s, Ddr4 Sdram

    Cache Protection: Yes

    Super Capacitor: Cvpm05 Module

    Mtbf: >3,000,000 Hours At 40°c

    Ocp Thermal Tier: Tier 5

    Operating Temperature: 0°c To 55°c

    Os: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd

    Physical Dimensions: 115.00 (+/-0.13) Mm X 76.00 (+/-0.13) Mm

    Raid Levels: 0, 1, 10, 5, 50, 6, 60

    Typical Power: 13w

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 30 Days.
