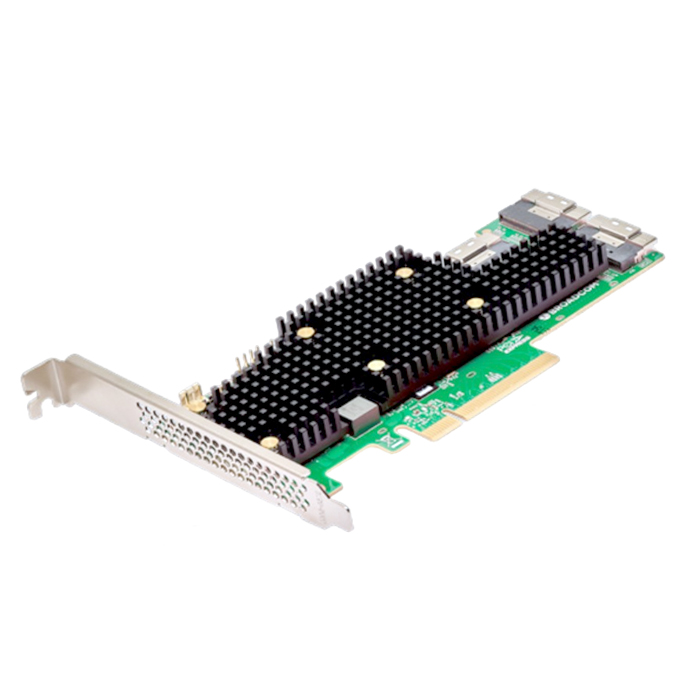

** Image may not exactly match product **
Broadcom 9560-16I MegaRAID 12Gb/s SAS/SATA PCIe Gen 4.0(NVMe) Tri-Mode RAID Controller

Broadcom 9560-16I MegaRAID 12Gb/s SAS/SATA PCIe Gen 4.0(NVMe) Tri-Mode RAID Controller

Part Number: 9560-16I

Quantity :
5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

BROADCOM 9560-16I Megaraid 12gb/s Sas/sata Pcie Gen 4.0(nvme) Tri-mode Raid Controller

Technical Information:

Port Count: 16 Internal

Connectors: Two X8 Sff-8654

Host Interface: X8 Pcie Gen 4.0

Storage Interface: 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)

Raid On Chip Controller (roc): Sas3916

Max Devices Per Controller: Sas/sata: 240 Nvme: 24

Cache Size: 8 Gb

Cache Protection: Cachevault, Cvpm05

Raid Features:

  • Raid Levels 0, 1, 5, And 6
  • Raid Spans 10, 50, And 60
  • Jbod Mode With R0/1/10 And Jbod For Sds Environments
  • Online Capacity Expansion (oce)
  • Auto Resume After Loss Of System Power During Array Rebuild Or Oce
  • Single Controller Multipathing
  • Load Balancing
  • Configurable Stripe Size Up To 1 Mb
  • Fast Initialization For Quick Array Setup
  • Check Consistency For Background Data Integrity
  • Ssd Support With Ssd Guard™ Technology
  • Patrol Read For Media Scanning And Repairing
  • 64 Virtual Drive Support

    Management Utilities:
  • Lsi Storage Authority (lsa)
  • Storcli (command-line Interface)
  • Hii (uefi Human Interface Infrastructure)

    Os Support: Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd. See WWW.BROADCOM.COM/SUPPORT/DOWNLOAD-SEARCH For Details On Versions.

    Dimensions: 6.127 In. × 2.712 In. (155.65 Mm × 68.90 Mm)

    Typical Power: 13.21w

    Operating Voltage: 12v ±8%, 3.3v ±9%

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
