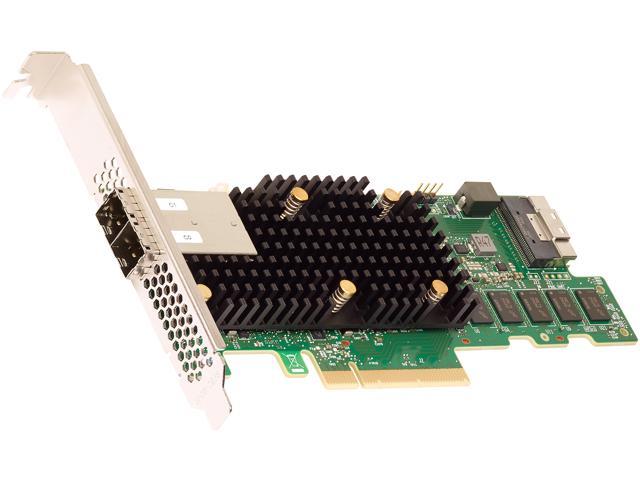

BROADCOM 9580-8I8E Megaraid 9500 Pcie Gen 4.0 Tri-mode Storage Adapter.


The Megaraid 9500 Series Is The Industry’s First Pcie Gen 4.0 Raid Adapter Family, Offering Pcie Gen 4.0 Host And Storage Interfaces. The Megaraid 9580-8I8E Adapter, Based On The Sas3916 High-port Count Pcie 4.0 X8 Raid-on-chip (roc), Delivers Twice The Performance Of Previous Generations.

The 9580-8I8E Is Compatible With Existing Pcie Sff-8639 Module (u.2) Backplanes, Allowing Users To Boost Performance For Today’s Ever Increasing Bandwidth Environments. Coupled With Two Industry Initiatives Expanding The Deployment Of Tri-mode Serdes Technology, The 9580-8I8E Is Instrumental In Getting The Most Performance And Flexibility Out Of U.3 Backplanes:.

• Sff-ta-10001 Specification (u.3), Which Defines A Common Bay Type For Sas, Sata And Nvme

• Universal Backplane Management (ubm), Which Defines A Common Backplane Control And Management Framework

With Tri-mode Serdes Technology, The Megaraid 9580-8I8E Can Operate In All Three Modes Concurrently, Serving Nvme, Sas Or Sata Drives. The Adapter Negotiates Between Speeds And Protocols To Seamlessly Work With Any Of The Three Types Of Storage Devices. Tri-mode Support Provides A Non-disruptive Way To Evolve Existing Data Center Infrastructure.


Port Count 8 Internal, 8 Externa

Connectors One X8 Sff-8654 2 X4 Sff-8644

Host Interface X8 Pcie Gen 4.0

Storage Interface 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)

Raid On Chip Controller(roc) Sas3916

Max Devices Per Controller Sas/sata: 240nvme: 32

Cache Size 8 Gb

Cache Protection Cachevault, Cvpm05

Raid Features
• Raid Levels 0, 1, 5, And 6
• Raid Spans 10, 50, And 60
• Jbod Mode With R0/1/10 And Jbod For Sds Environments
• Online Capacity Expansion (oce)
• Auto Resume After Loss Of System Power During Array Rebuild Or Oce
• Single Controller Multipathing
• Load Balancing
• Configurable Stripe Size Up To 1 Mb
• Fast Initialization For Quick Array Setup
• Check Consistency For Background Data Integrity
• Ssd Support With Ssd Guard™ Technology
• Patrol Read For Media Scanning And Repairing
• 64 Virtual Drive Support
• Ddf Compliant Configuration On Disk (cod)
• S.m.a.r.t. Support
• Global And Dedicated Hot Spare With Revertible Hot Spare Support:
- Automatic Rebuild
- Enclosure Affinity
- Emergency Sata Hot Spare For Sas Arrays
• Enclosure Management:
- Ses (inband)
- Sgpio (sideband)
- Universal Backplane Management (ubm) Ready
• Databolt Bandwidth Optimizer Technology Support For Compatible Expander-based Enclosures
• Shield State Drive Diagnostic Technology• Megaraid Safestore Software For Sed Key Management

Management Utilities
• Lsi Storage Authority (lsa)
• Storcli (command-line Interface)
• Hii (uefi Human Interface Infrastructure)

Os Support > Microsoft Windows, Vmware Vsphere/esxi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix Xenserver, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd.

Dimensions 6.600 In. × 2.712 In. ( 167.65 Mm × 68.90 Mm)

Operating Conditions Operating: 0°c To 55°c, 5 To 90% Non-condensing Storage: -45°c To 105°c, 5 To 95% Non-condensing

Typical Power 14.25w

Operating Voltage 12v ±8%. 3.3v ±9%

mtbf (calculated) >3,000,000 Hours At 40°cd
