Detail overview

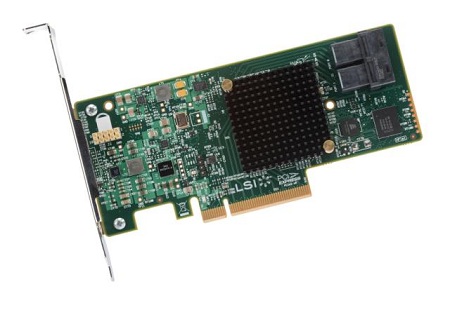

DELL Y8JXC 9341-8i Sas Megaraid 12gb 8port Pc-e 3.0 Sas Sata Raid Controller.

Key Features

Physical Dimensions 2.6” X 6.0”

Connectors Two, X4, Sff-8643 Mini-sas Hd Horizontal Connector Placement

Max Number Of Physical Devices
• Non-raid (jbod Mode): 64
• Raid 0: 32 Per Volume
• Raid 1: 2 Per Volume Plus Hot Spare
• Raid 5: 32 Per Volume
• Raid 10: 32 Per Volume
• Raid 50: 32 Per Volume

Host Bus Type 8-lane, 5 Gt/s Pci Express 3.0 Compliant

Data Transfer Rates Up To 12gb/s Per Port

Key Raid Data Protection Features
• Raid Levels 0, 1, 5, 10, 50 And Jbod Mode
• Online Capacity Expansion (oce)
• Online Raid Level Migration (rlm)
• Auto Resume After Loss Of System Power During Array
rebuild Or Rlm
• Single Controller Multipathing (load Balancing)
• Drive Hot Plug Support
• Drive Roaming
• Selectable Logical Drive As Boot Drive
• Virtual Disk (vd) Consistency Check
• Fast Initialization For Quick Array Setup
• Staggered Disk Spin Up
• Hot Spare Support (up To 8)
– Global, Dedicated (copy Back), Enclosure Affinity And Emergency Sata Support
• Automatic Rebuild Support
• Safestore Encryption Services For Sed Hdds
• Shielded State Drive Diagnostic Technology
• Patrol Read Media Scan And Repair
• Online Hdd Firmware Update
• Error Recovery Support
• Sas Tcq Support
• Sata Ncq Support
• Support For Native 4k Hdds
• Non Disk Device Support
• >2tb Logical Drive Support
• Soft Bad Block Management
• Ddf-compliant Configuration On Disk
• Foreign Configuration Import
• S.m.a.r.t. Support
• Ses (inband) & Sgpio (sideband) Management

Megaraid Management Suite
• Megaraid Storage Manager™
– Now With Single Login For Domain Admin
• Storcli (command-line Interface)
• Ctrl-r (bios Configuration Utility)
• Hii (uefi Human Interface Infrastructure)

Environments
operating 0°c To 70°c
5 To 90% Non-condensing
storage -45°c To 105°c
5 To 90% Non-condensing

Pci Card Type 3.3v Add-in Card

Pci Voltage +12v +/-8%

Pci Power 13.0 W (normal), 19.04 W (max)

Pci Modes Bus Master Dma

Led Indicators Internal Activity/fault Per X4 Port – Heartbeat

Mtfb >2,800,000 Hours

Os Support Extensive Support Includes Microsoft® Windows® Server 2012/vista/2008/server 2003, Linux®, Solaris™ (x86), Freebsd®,
vmware® And More.

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
