Detail overview

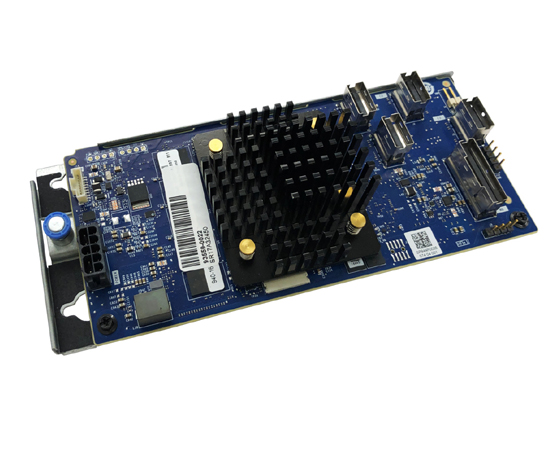

LENOVO 01PE597 Raid 940-16i 8gb Flash Pcie Gen4 12gb Internal Adapter For Thinksystem.

Main Specifications

Adapter Type Raid Controller

Form Factor Custom Cff

Controller Chip Broadcom Sas3916

Broadcom Equivalent Megaraid 9560-16i 8g

Host Interface Pcie 4.0 X8

Port Interface 12 Gb Sas

Number Of Ports 16

Port Connectors Four X4 Sff-8654

Tri-mode Support Yes

Drive Interface Sas, Sata, Nvme U.3

Drive Type Hdd, Sed, Ssd

Hot-swap Drives Yes

Max Devices 16

Raid Levels 0, 1, 10, 5, 50, 6, 60

Jbod Mode Yes

Cache 8gb (standard)

Cachevault Cache Protection With Flash Yes

Performance Accelerator (fastpath) Yes

Ssd Caching (cachecade Pro 2.0) No

Sed Support Yes (safestore)

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
