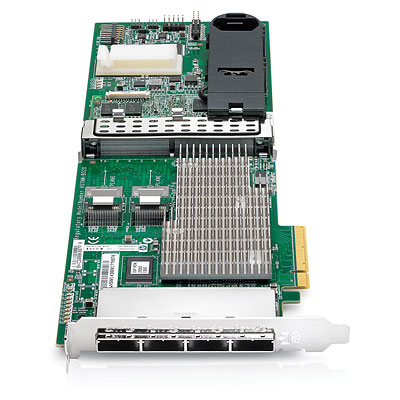

HPE 487207-B21 Smart Array P812/1G FBWC 6GB PCIe x8 SAS Controller

Description :

- Manufacturer : HPE
- Manufacturer Part Number : 487207-B21
- Product Name : Smart Array P812/1g Fbwc Sas Raid Controller

Technical Specifications :

Storage Interface (sas/sata) :
- Two Mini Sas 4i Connectors For Attachment To Internal Drive Backplanes
- Four Mini Sas 4x Connectors For Attachment To Jbods And External Tape Drives
- 6 Gb/s Sas Technology Delivers Up To 600 Mb/s Per Physical Link.
- 3 Gb/s Sata Technology Delivers Up To 300 Mb/s For Directly Attached Sata Drives.
- Mix-and-match Sas And Sata Drives. Deploy Drive Technology As Needed To Fit The Computing Environment.
- Support For Sas Tape Drives, Sas Tape Autoloaders, And Sas Tape Libraries.

Host Interface (pci Express) :
- Pci Express 2.0 8x Host Interface Provides Up To 4 Gb/s In Each Direction

Raid Controller Features :
- 1 Gib Flash-backed Write Cache (not All Of Which Is Available For User Data)
- Raid 0, 1, 1+0, 5, 6, 50, And 60
- Recovery Rom Protects Against Rom Corruption.

Interface Provided :
24 Sas/sata Physical Links Distributed Across Six Mini Sas Connectors :

- Two Mini Sas 4i Connectors (8 Physical Links): For Attachment To Internal Drive Backplanes
- Four Mini Sas 4x Connectors (16 Physical Links): For Attachment To Jbods And External Tape Drives

Other Features :
- Sas 2.0 (6 Gb/s, 3 Gb/s, And 1.5 Gb/s). 6 Gb/s Bandwidth Supports Larger Numbers Of Sas Drives In The Sas Subsystem And Provides Better Support For Future High-bandwidth Ssds.
- Sata 2.6 (3 Gb/s And 1.5 Gb/s).

Slot Required :
Total Qty: 1
Type: Pci Express X8

Dimensions :
Width: 8.25 In.
Depth: 18.25 In.
Height: 3.88 In.

Condition : Refurbished.
Availability : In Stock .
Our Warranty : 90 Days.
