Detail overview

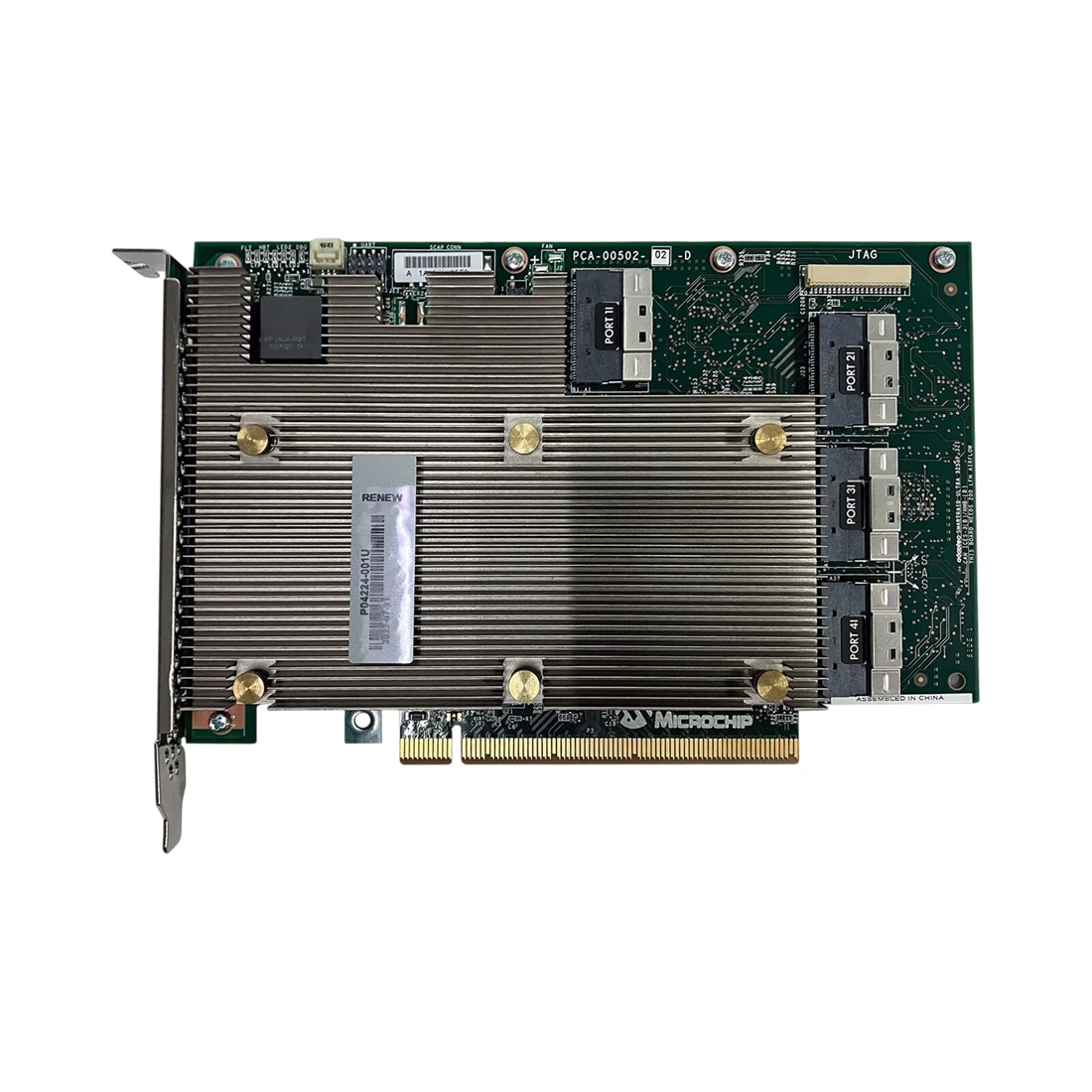

HPE P04224-001 Microchip Smartraid Sr932i-p X32 Lanes 8gb Wide Cache Nvme/sas 24g Controller For Gen10 Plus

Key Features:

• 16-lane (x16) (sr932i-p) Or 8-lane (x8) (sr416i-a) Pcie Gen4 Host Interface

• Sr932i-p: 32 Internal Tri-mode Ports (slimsas Sff-9402 Connectors Supporting
u.2 And U.3) Supporting Up To 32 Direct-connected Sas/sata/nvme Devices

• Sr416i-a: 16 Internal Tri-mode Ports (slimsas Sff-9402 Connectors Supporting U.2 And U.3) Supporting Up To 16 Direct-connected Sas/sata/nvme Devices

• Hardware Raid: Raid 0, 1, 1 Tp, 10, 10 Tp, 5, 6, 50, 60

• Universal Backplane Management (ubm) Support – Sas/sata And Nvme

• Sr932i-p: 144b Ddr4-3200 8gb High Speed Dram Cache With Integrated Cache Protection Using HPE Smart Storage Battery Solution

• Sr416i-a: 4gb 72b Ddr4-3200 Cache With Integrated Cache Protection Using HPE Smart Storage Battery Solution

• Sr:932i-p: Performance: Up To 46gb/s Bi-directional Throughput And Up To 3.5m Iops

• Sr416i-a: Up To 24gb/s Of Bi-directional Throughput And Up To 3.5m Iops

• Enclosure Management Support – Sas/sata: Ses (sas Expander-based Backplanes), Sgpio (direct Attached Sas/sata Backplanes)

• Secure Boot, Secure Update, Secure Debug And Attestation

• Data-at-rest Encryption Support Using Controller-based Encryption(cbe) For Sas, Sata And Nvme Devices

• Smartcache Ssd Caching

• Mixed Mode And Hba Mode Support

• Support For Up To 238 Ssds/hdds

• Support For Nvme Target Devices With Gen 3/4 Interfaces (x1, X2, X4, And X8 Wide Interfaces)

• Support For 64 Logical Drives/raid Arrays

• Support For 512-byte Sas/sata/nvme Devices

• Integrated Cache Protection Using HPE Smart Storage Battery Solution

Condition : New Factory Sealed.
Availability : In Stock.
Our Warranty : 30 Days.
