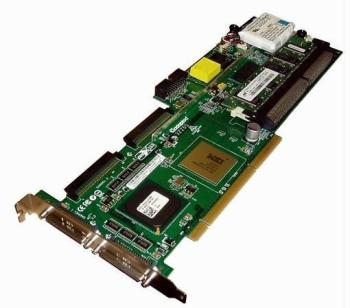

IBM 13N2198 ServeRaid 6M Ultra320 Raid Controller

IBM 13N2198 SERVERAID 6M DUAL CHANNEL PCI-X 133MHZ ULTRA320 SCSI CONTROLLER WITH STANDARD BRACKET 256MB CACHE & BATTERY. REFURBISHED. IN STOCK. (BATTERY GROUND SHIP ONLY)

Part No. 13N2198
Quantity:
Price: $28.00
Add 1 Yr. Warranty $10.00

DESCRIPTION:

THIS SERVERAID-6M CONTROLLER OPTION BASED ON HIGH-PERFORMANCE PCI-X ARCHITECTURE A SCSI ND POWERED BY AN INTEL XSCALE MICROPROCESSOR DELIVERS ADVANCED RAID AND ULTRA320TECHNOLOGY. COMBINED WITH AN XSERIES ULTRA320 HARD DISK DRIVE (HDD) AND A SUPPORTED XSERIES SERVER THIS CONTROLLER DELIVERS A POWERFUL SOLUTION TO HELP SOLVE YOUR BUSINESS-CRITICAL HIGH-SPEED DATA STORAGE REQUIREMENTS. SATISFY MIDRANGE TO ADVANCED HIGH-AVAILABILITY DATA-STORAGE APPLICATIONS BY INSTALLING THIS HIGH-PERFORMANCE SERVERAID-6M CONTROLLER OPTION IN YOUR XSERIES SERVER. THIS TWO-CHANNEL ULTRA320 SCSI RAID CONTROLLER DELIVERS EXCELLENT PERFORMANCE SPEEDS ACCESS TO STORED DATA AND HELPS IMPROVE SERVER PROCESSOR UTILIZATION AND THROUGHPUT. THIS CONTROLLER OPTION INCLUDES AN ADVANCED JAVA-BASED SERVERAID MANAGER THAT EASILY INTEGRATES INTO IBM DIRECTOR TO PROVIDE OUTSTANDING SETUP MONITORING AND ADMINISTRATION OF THE RAID ARRAY

SPECIFICATIONS:

- BUFFER SIZE: 256MB
- CHANNEL QTY: 2
- CONTROLLER INTERFACE TYPE: ULTRA320 SCSI
- DATA TRANSFER RATE: 320MBPS
- DEVICE TYPE: STORAGE CONTROLLER (RAID) PLUG IN CARD
- INTERFACE TYPE: PCI-X / 133MHZ
- MAX STORAGE DEVICES QTY: 28
- RAID LEVEL: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 1E, RAID 1E0, RAID 00, RAID 5EE
- SUPPORTED DEVICES: DISK ARRAY (RAID)



CONDITION : REFURBISHED.
AVAILABILITY : IN STOCK.
OUR WARRANTY : 30 DAYS.
