| Product Overview
General Information:

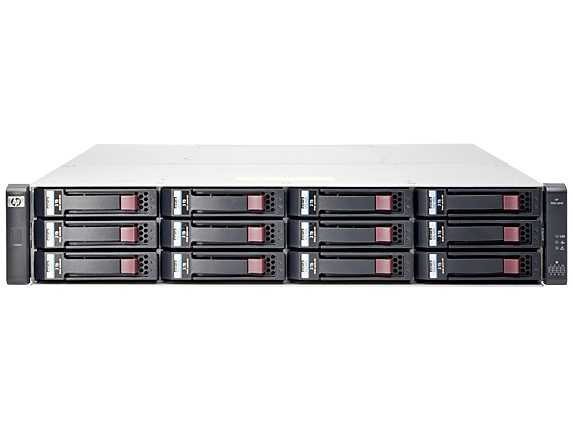

Device Type: Hard Drive Array
Enclosure Type: Rack-mountable - 2u
Chassis:
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 12
Supported Drives: Sas-2
Storage:
Max Supported Capacity: 96 Tb
Hdd Array External Interface: 8gb Fibre Channel, Iscsi (1 Gbe), Iscsi (10 Gbe), 16gb Fibre
channel
Maximum Luns: 512
Storage Controller:
Type: 2 X Raid
Interface Type: Sas 6gb/s
Data Transfer Rate: 600 Mbps
Cache / Buffer Size (max): 8 Gb
Raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50
Hard Drive:
Type: No Hdd
Expansion / Connectivity:
Expansion Bays: 12 (total) / 12 (free) - 3.5 Lff
Interfaces: 2 X Sas 6gb/s - 26 Pin 4x Shielded Mini Multilane Sas (sff-8088) ¦ 2 X
Management ¦ 2 X Management - Rj-45 ¦ 8 X 8gb Fibre Channel / 16gb Fibre Channel / Ethernet 10gb / Ethernet 1000 - Sfp+
Power:
Power Device: 2 X Internal Power Supply - Hot-plug
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: Ac 120/230 V - 50/60 Hz
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
