Detail overview

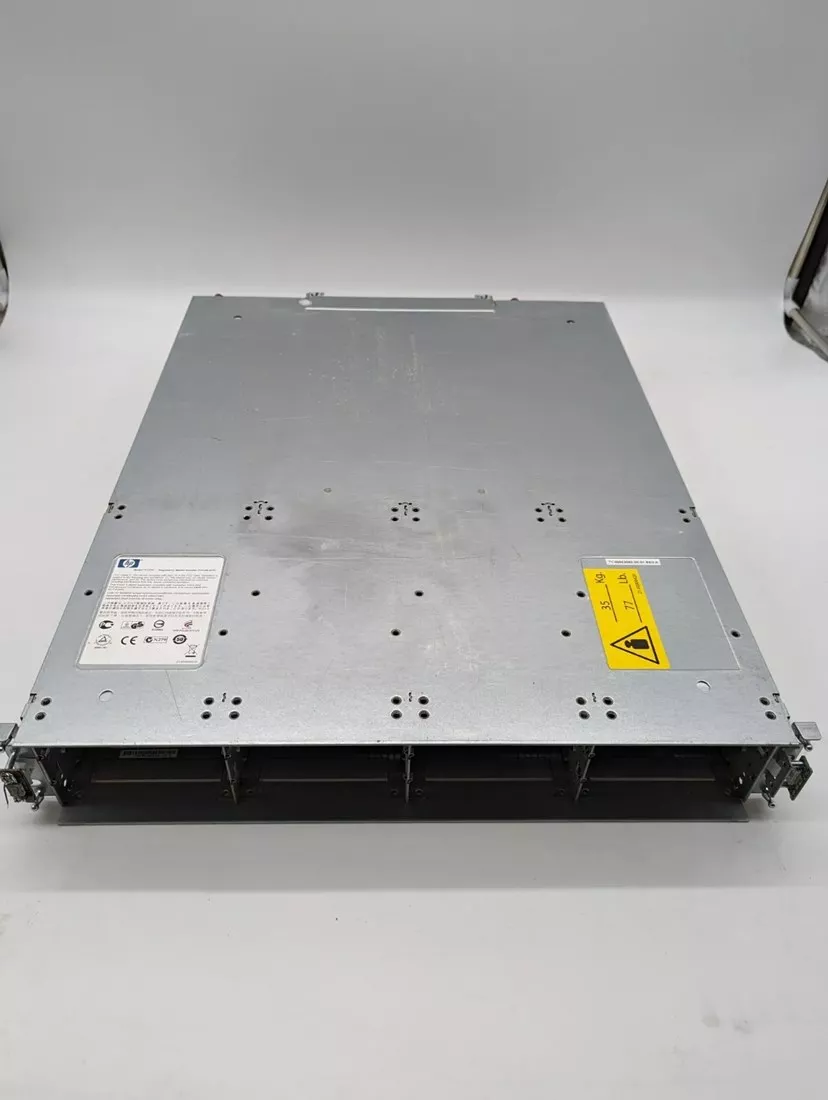

HP - Storageworks Modular Smart Array P2000 G3 Fc Dual Controller Lff Array Hard Drive Array.

Cabinet (chassis):
installed Devices / Modules Qty: 0
supported Devices / Modules Qty: 12
supported Drives: Serial Ata-300 / Sas 2

Storage:
hdd Array External Interface: 8gb Fibre Channel
maximum Luns: 512

Storage Controller:
type: 2 X Raid ( 8gb Fibre Channel )
controller Interface Type: Serial Ata-300 / Sas 2.0
data Transfer Rate: 600 Mbps
cache / Buffer Size ( Max ): 2 Gb
supported Devices: Disk Array (raid)
raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50

Storage Hard Drive:
interface Type: Serial Ata-300 / Sas 2.0

Expansion / Connectivity:
expansion Bays Total (free): 12 ( 12 - 3.5)

Interfaces:

4 X 8gb Fibre Channel

4 X Ethernet 10base-t/100base-tx/1000base-t - Rj-45

2 X Management - Mini-usb Type B

2 X Management - Rj-45 2 X Serial Attached Scsi 2

System Requirements:
os Required: HP-UX, Red Hat Linux, Suse Linux Enterprise Server, Microsoft Windows Server 2003, HP Openvms, Microsoft Windows Server 2003 R2 Enterprise Edition Sp2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008 Datacenter X64 Edition, Microsoft Windows Server 2008 Enterprise X64 Edition, Microsoft Windows Server 2008 Standard X64 Edition
miscellaneous

Compliant Standards:
cispr 22 Class A, Cispr 24, En55022, En55024, Ices-003 Class A, Ul 60950-1, Iec 60950-1, En 60950-1, Csa C22.2 No. 60950-1-03, Rohs, Fcc Cfr47

Power:
power Device: 2 X Power Supply - Hot-plug / Redundant - Plug-in Module
power Redundancy: Yes
power Redundancy Scheme: 1+1
voltage Required: Ac 120/230 V ( 50 - 60 Hz )

Dimensions & Weight:
width : 17.6 In.
depth : 21.7 In.
height : 3.5 In.
weight : 35 Lbs.

Condition : Refurbished.
Availability : In Stock.
Our Warranty : 30 Days.
