Detail overview

General Information :

Brand : Western Digital

Part : 0F29535

Product Line : Ultrastar

Product Series : Ultrastar Dc Hc520

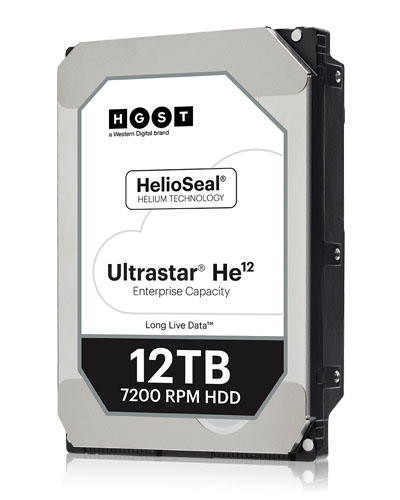

Product Name : Ultrastar Dc Hc520 12tb Enterprise Hard Drive.

Applications/environments :

Enterprise And Data Center Applications Where Capacity Density, Power Efficiency And Reliability Are Paramount

Cloud & Hyperscale Storage

Massive Scale-out (mso), High-density Data Centers

Distributed File Systems

Bulk Storage Using Object Storage Solutions Like Ceph™ And Openstack Swift

Primary And Secondary Storage For Hadoop® To Support Big Data Analytics

Centralized Video Surveillance

Ideal For All Mainstream Enterprise Capacity Applications

Key Features :

Storage Capacity : 12 Tb

Enclosure : Internal

Max. Areal Density : 864 Gbits/sq. In

Interface : Sas-12gbps

Drive Dimensions : 3.5 Inch

Mtbf : 2.5 Million Hours

Drive Performance :

Interface Transfer Rate : 1200 Mbps

Sustained Transfer Rate : 243 Mbps (read), 255 Mbps (write)

Seek Time (read, Typical) : 8.0 Ms

Seek Time (write, Typical) : 8.6 Ms

Average Latency : 4.16 Ms

Buffer : 256 Mb

Rotational Speed : 7200 Rpm

Physical :

Z-height : 26.1 Mm

Dimensions ( W X D) : 101.6 X 147 Mm

Weight : 660 G



Condition : Brand New Dell Oem.
Availability : In Stock.
Server Supply Warranty : 30 Days.
