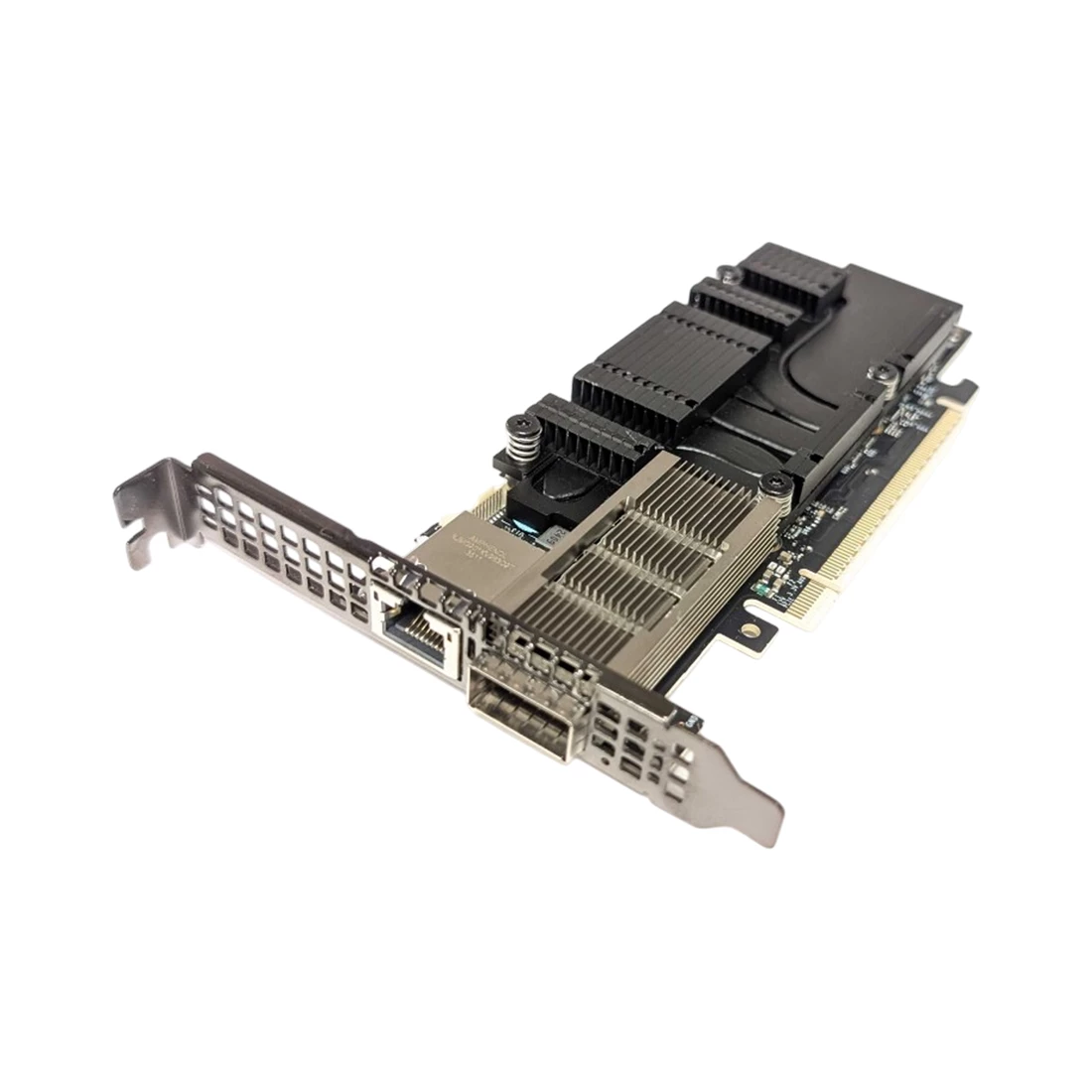

Dell KK4NR NVIDIA BlueField-3 E-Series B3140H Single-Port SuperNIC DPU 400GbE QSFP112 RJ-45 BMC PCIe 5.0 x16 Crypto Enabled HHHL with Full Height Bracket
KK4NR
KK4NR
KK4NR
KK4NR
KK4NR

Dell KK4NR NVIDIA BlueField-3 E-Series B3140H Single-Port SuperNIC DPU 400GbE QSFP112 RJ-45 BMC PCIe 5.0 x16 Crypto Enabled HHHL with Full Height Bracket

Part Number: KK4NR
BRAND: DELL | More NETWORKING from DELL
$3,450.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

DELL KK4NR Nvidia Bluefield-3 E-series B3140h Single-port Supernic Dpu 400gbe Qsfp112 Rj-45 Bmc Pcie 5.0 X16 Crypto Enabled Hhhl With Full Height Bracket.

Total Specifications

General

  • Product Type: network Card
  • Form Factor: hhhl Card With Full Height Bracket
  • Single-slot Hhhl Card Dimensions :68.90mm X 167.65mm
  • Tall Bracket Dimensions: 120.5 X 21.95mm
  • Heatsink Dimensions: 139.6mm X 92.7mm X 10.2mm (length, Width, Height)

    Components
  • Bluefield-3 Soc: Bluefield-3 E-series -8 Arm-cores - 505mhz/2000mhz
  • On-board Memory: Single-channel With 10 Ddr5 + Ecc (64bit + 8bit Ecc) For A Total Of 16gb 5200mt/s 40gb Pslc Emmc Memory + 128gb Ssd

    Interfaces
  • Pci Express Interface: Gen 5.0 Serdes 32.0gt/s, 16 Lanes (4.0, 3.0, 2.0 And 1.1 Compatible)
  • Networking Connector: Single-port Qsfp112 (copper And Optical)
  • Bmc: 1 Gbe Out-of-band Management Port (rj-45)

    Data Rate
  • Infiniband: Ndr/ndr200/hdr/hdr100/edr/fdr/sdr
  • Ethernet (default): 400/200/100/50/25/10 Gb/s

    Protocol Support
  • Infiniband: Ibta V1.5 (when Connected To Another Nvidia Infiniband Product) Auto-negotiation: Ndr (4 Lanes X 100gb/s Per Lane) Port, Ndr200 ( 2 Lanes X 100gb/s Per Lane ) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane)

  • Ethernet: 400gaui-4 C2m, 400gbase-cr4 , 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sfi

    Electrical And Thermal Specifications
  • Voltage: 12v
  • Power Supply Requirement: a Minimum Of 75w System Power Supply Through The Pcie X16 Interface

    Environmental
  • Temperature: Operational: 0c To 55c
  • Non-operational: -40c To 70c
  • Humidity: Operational: 10% To 85% Relative Humidity
  • Non-operational: 10% To 90% Relative Humidity
  • Altitude (operational): 3050m

    Condition: Refurbished.
    Availability: In Stock.
    Our Warranty: 90 Days.
