** Image may not exactly match product **

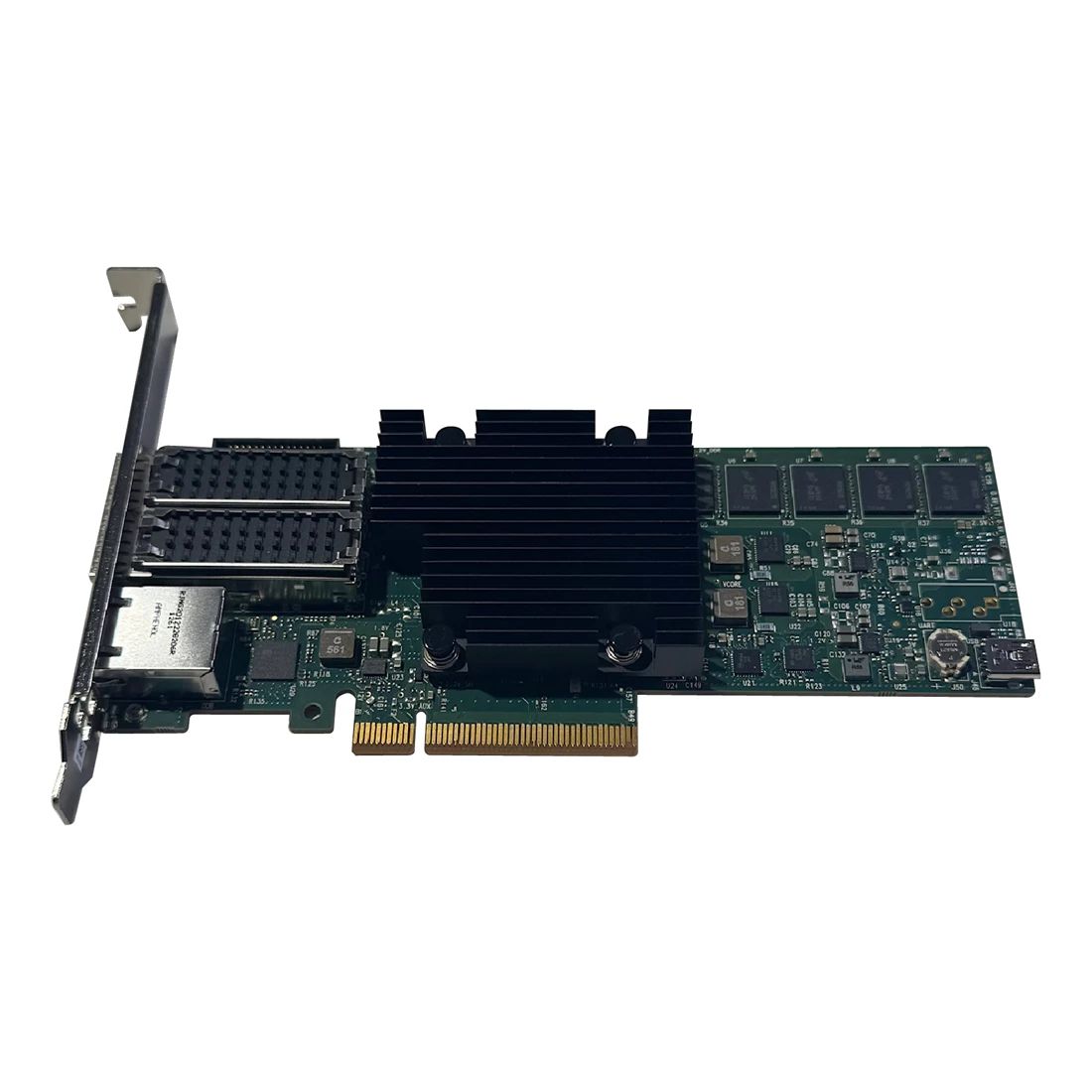

Mellanox MBF2H332A-AECOT BlueField-2 P-Series DPU 25GbE Dual-Port SFP56 PCIe Gen4 x8 Crypto and Secure Boot Enabled 16GB on-board DDR 1GbE OOB management HHHL
BRAND: MELLANOX | More NETWORKING from MELLANOX
$290.00
Capacity: 2 PORT
Quantity :
Product Overview
Bluefield-2 P-series - 8 Cores - 500mhz/2500mhz
Crypto Enabled, Secure Boot Enabled
Physical:
Card Dimensions (hhhl): 2.71 In. X 6.6 In. (68.90mm X 167.65 Mm)
Bracket Dimensions: 4.73 In. X 0.85 In. (121.0mm X 21.6mm)
Interfaces :
Pci Express Gen4.0: Serdes 16.0gt/s, 8 Lanes (3.0, 2.0 And 1.1 Compatible)
Protocol Support :
Data Rate: 25/10/1 Gb/s Ethernet
Ethernet: 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr
On-board Memory:
Single-channel With 8 Ddr4 8 Bit + Ecc (64bit + 8bit Ecc) 16gb 3200mt/s
64gb Emmc Memory
Dpu Power Consumption And Airflow:
Voltage: 12v
Maximum Power Available Through Sfp56 Port: 2w
Environmental:
Temperature:
- Operational : 0°c To 55°c
- Non-operational: -40°c To 70°c
Humidity:
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity
Regulatory:
Safety: Cb / Ctuvus / Ce
Emc: Ce / Fcc / Vcci / Ices / Rcm
Rohs : Rohs Compliant
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
MELLANOX MBF2H332A-AECOT Bluefield-2 P-series Dpu 25gbe Dual-port Sfp56 Pcie Gen4 X8 Crypto And Secure Boot Enabled 16gb On-board Ddr 1gbe Oob Management Hhhl
total Specifications
Bluefield-2 Soc :
Physical:
Interfaces :
Protocol Support :
On-board Memory:
Dpu Power Consumption And Airflow:
Environmental:
- Operational : 0°c To 55°c
- Non-operational: -40°c To 70°c
- Operational: 10% To 85% Relative Humidity
- Non-operational: 10% To 90% Relative Humidity
Regulatory:
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
