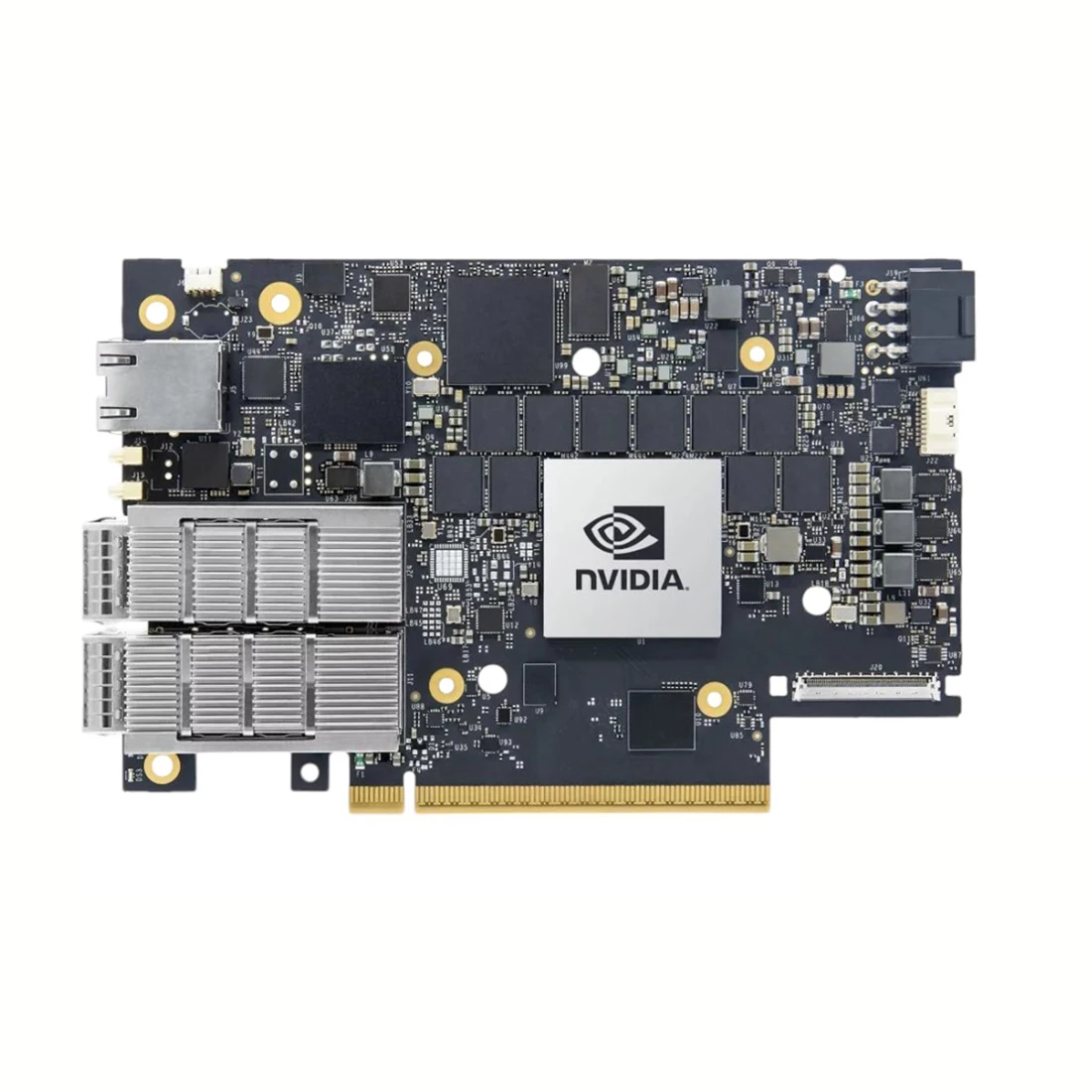

NVIDIA 900-9D3B6-00CV-AA0 BlueField-3 P-Series B3220 6 Arm-Cores PCIe 5.0 x16 200 Gigabit QSFP112 x 2 Network Adapter
900-9D3B6-00CV-AA0
900-9D3B6-00CV-AA0
900-9D3B6-00CV-AA0
900-9D3B6-00CV-AA0
900-9D3B6-00CV-AA0

NVIDIA 900-9D3B6-00CV-AA0 BlueField-3 P-Series B3220 6 Arm-Cores PCIe 5.0 x16 200 Gigabit QSFP112 x 2 Network Adapter

Part Number: 900-9D3B6-00CV-AA0
BRAND: NVIDIA | More NETWORKING from NVIDIA
$3,850.00
Capacity: 2 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

NVIDIA 900-9D3B6-00CV-AA0 Bluefield-3 P-series B3220 6 Arm-cores Pcie 5.0 X16 200 Gigabit Qsfp112 X 2 Network Adapter

Specifications

Bluefield-3 Soc Bluefield-3 P-series - 16 Arm-cores - 560 Mhz/2133mhz

Physical

  • Single-slot Fhhl Card Dimensions: 111.15mm X 167.65mm
  • Tall Bracket Dimensions: 121.0mm X 21.6mm
  • Heatsink Dimensions (length, Width, Height): 139.6mm X 92.7mm X 10.2mm

    Interfaces
  • Pci Express Interface :gen 5.0 Serdes @ 32.0gt/s, 16 Lanes (4.0, 3.0, 2.0 And 1.1 Compatible)
  • Optional: Additional Pcie X16 Gen 4.0/5.0 @ Serdes 32gt/s Through The Pcie Auxiliary Passive Card And Cabline Ca-ii Plus Harnesses

  • On-board Memory:
    - Dual-channel With 20 Ddr5 + Ecc (128bit + 16bit Ecc) For A Total Of 32gb @ 5200mt/s(
    - 40gb Pslc Emmc Memory + 128gb Ssd
  • Networking Connector: Ndr200/hdr/hdr100/edr/fdr/sdr

    Data Rate
  • Infiniband (default Mode): Ndr200/hdr/hdr100/edr/fdr/sdr
  • Ethernet: 200/100/50/25/10 Gb/s

    Protocol Support
  • Infiniband:
    - Ibta V1.5a
    - Auto-negotiation: Ndr200 ( 2 Lanes X 100gb/s Per Lane ) Port, Hdr (50gb/s Per Lane) Port, Hdr100 (2 Lane X 50gb/s Per Lane), Edr (25gb/s Per Lane) Port, Fdr (14.0625gb/s Per Lane), 1x/2x/4x Sdr (2.5gb/s Per Lane)

  • Ethernet: 200gaui-4 C2m, 200gbase-cr4, 100gaui-2 C2m, 100gbase-cr4, 100gbase-cr2, 100gbase-cr1, 50gaui-2 C2m, 50gaui-1 C2m, 50gbase-cr, 50gbase-r2 , 40gbase-cr4, 40gbase-r2, 25gbase-r, 10gbase-r, 10gbase-cx4, 1000base-cx, Caui-4 C2m, 25gaui C2m, Xlaui C2m , Xlppi, Sfi

    Capabilities Crypto Enabled With Integrated Bmc

    Electrical And Thermal Specifications
  • Voltage: 12v

    Environmental
  • Temperature:
    - Operational: 0°c To 55°c
    - Non-operational: -40°c To 70°c

    Humidity
    - Operational: 10% To 85% Relative Humidity
    - Non-operational: 10% To 90% Relative Humidity

    Altitude (operational) 3050m

    Condition: New Factory Sealed.
    Availability: In Stock.
    Our Warranty: 90 Days.
