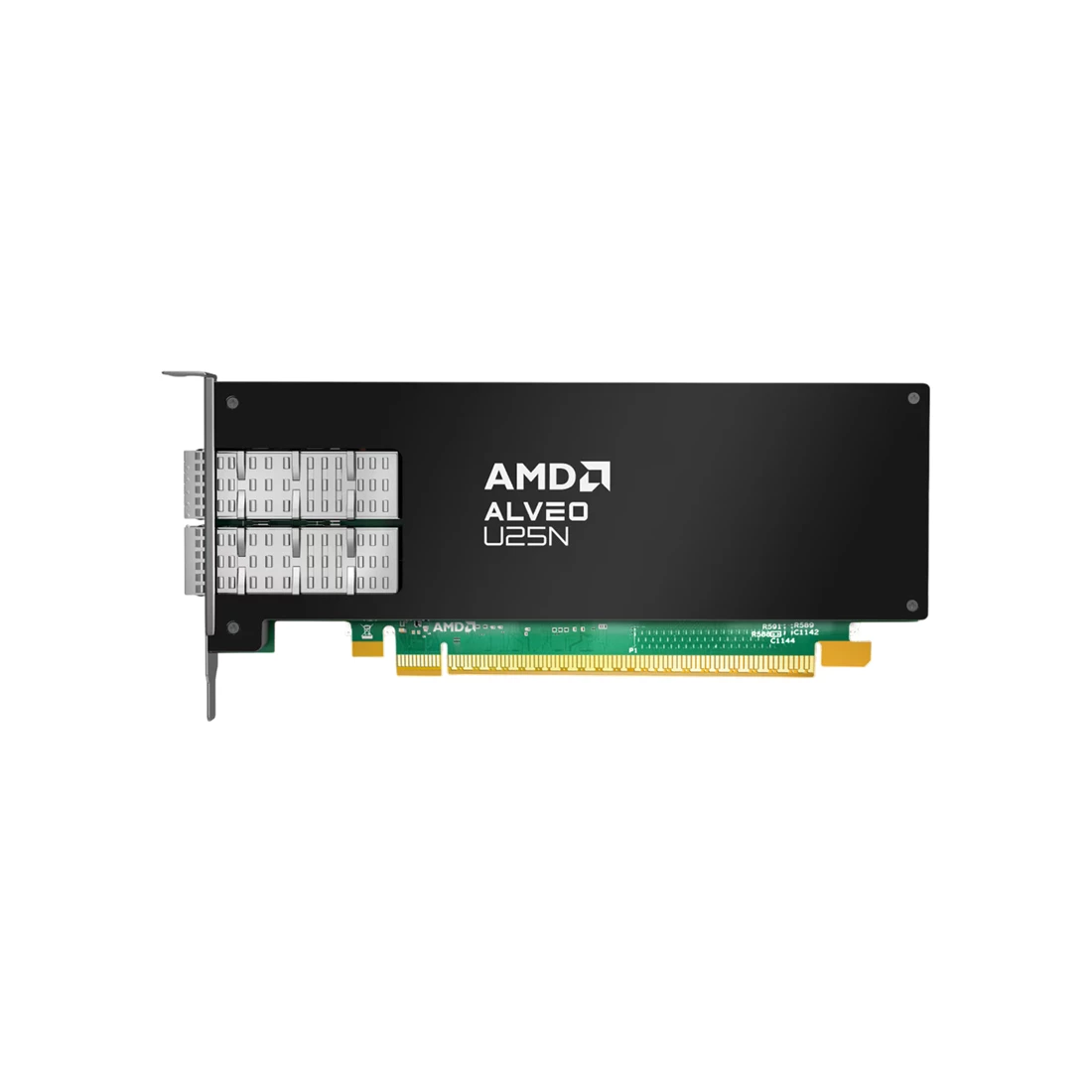

Overview For Cloud And Enterprise Architects Building Modern Data Centers, The AMD Alveo™ U25n Provides A Comprehensive 25gbe Smartnic Platform That Brings True Convergence Of Network And Security Acceleration Functions Like Ovs And Ipsec Into A Single Platform.
The U25n Smartnic Platform Is Based On The Fusion Of Three Technologies, A Powerful System On A Chip (soc) That Includes An Fpga And Multi-core Arm Processor, And A Proven Xtremescale™ X2 Ethernet Controller. The Fpga Enables In-line Hardware Acceleration And Offload With Maximum Efficiency While Avoiding Unnecessary Data Movements.
The Arm Cores Handle Exception Traffic Processing, And Fpga-related Management And Statistics. The X2 Ethernet Controller Chip Provides A Platform For Processing Two Ports Of 25 Gigabit Ethernet Via Field-proven Software Drivers
Key Features & Benefits
Powerful Smartnic The U25n Smartnic Contains A Programmable Fpga Processing All The Network Flows. Each Flow Can Be Individually Delivered To The Host And/or Streamed In Hardware Through Bump-in-the-wire Network Acceleration Functions. The Platform Also Enables The Ability For Customers To Accelerate Custom Workloads.
Hardware Accelerated For Clouds Cloud Service Providers Are Deploying Smartnic Fabrics To Achieve Virtual Switching And Micro-segmentation Of Services That Scale Linearly With Cpu Cores And Network Links. The U25n Is A Platform For The Industry’s First Converged Smartnic Fabric, Including Shrink-wrapped Applications.
AMD Advantages
Bump-in-the-wire Model To Offload And Accelerate Networking And Security Functions
Turnkey Advanced Network Accelerations Including Open Vswitch (ovs), Ipsec, And Firewall
Application Customization And Programmability Enables Flexibility To Add Custom Workloads
Baseline Nic Feature Parity With Field-proven Xtremescale™ Ethernet Controllers
Board Specifications
Pci Express: Gen3 X8
Network Interfaces: 2x Sfp28
Look-up Tables (luts): 522k
Ddr: 1x 2gb X 40 Ddr4-2400, 1x 4gb X 72 Ddr4-2400
Hardware Time Stamping: Yes
Pxe And Uefi Boot Support: Yes
Dimensions
Height: 2.54 Inch (64.4 Mm)
length: 6.60 Inch (167.65 Mm)
Width: Single X16 Pcie Slot
Networking Tunneling Offloads: Vxlan / Geneve
Stateless Offloads: Yes
Tunneling Offloads: Vxlan / Geneve
Sr-iov: Yes
Advanced Packet Filtering: Yes
Acceleration: Dpdk, Onload
Power & Thermals
Maximum Total Power: <45w
Thermal Cooling: Passive
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
