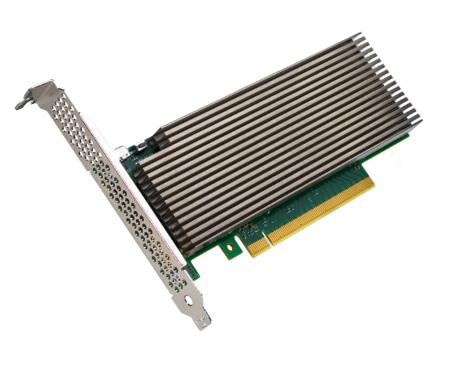

DELL 540-BDJU Intel vRAN Accelerator ACC100 PCIe Adapter

Part Number: 540-BDJU
BRAND: DELL | More NETWORKING from DELL
$375.00
Capacity: APPLICATION ACCELERATOR

Quantity :
| Product Overview

DELL 540-BDJU Intel Vran Accelerator Acc100 Pcie Adapter

Total Specifications:

Adapter Features:

Bus Type/bus Width Pcie 3.0 X16

Accelerator Intel Vran Dedicated Accelerator Acc100

Dimension: 6.67 In X 2.70 In (169 Mm X 69 Mm)

Fec Acceleration Features:

Ldpc Fec Processing For 3gpp 5g:

  • Ldpc Encoder/decoder
  • Code Block Crc Generation/checking
  • Rate Matching/de-matching
  • Harq Buffer Management

    Turbo Fec Processing For 3gpp 4g:
  • Turbo Encoder/decoder
  • Code Block Crc Generation/checking
  • Rate Matching/de-matching

    Load Balancing Supported By The Hardware Queue Manager (qmgr) Arbitrates Uplink And Downlink Block Requests Based On Bandwidth Allocation And Priority.

    Manageability:

    Smbus Operates At Up To 1mbps

    Pldm Over Mctp Over Smbus: Supports Pldm 2.1

  • Voltage Sensors - All Primary And Secondary Adapter Voltages
  • Temperature Sensors - Adapter, Ddr, And Bracket Ambient
  • Power Sensor - Overall Board Power
  • Warning/fatal Thresholds - Can Be Programmed

    Hardware-based Emergency Shutdown Shuts Down Controller When Card Is Over Temperature Or Over Voltage.

    Power Consumption:

    Power 53w

    Thermals And Airflow
  • 55 °c - 550 Lfm
  • 61 °c - 650 Lfm

    Supported Operating Systems And Software:
  • Interface Through The Dpdk Bbdev Library And Apis
  • Support In Flexran Software Reference Architecture
  • Linux Os Supported

    Condition: Brand New.
    Availability: In Stock.
    Our Warranty: 30 Days.
