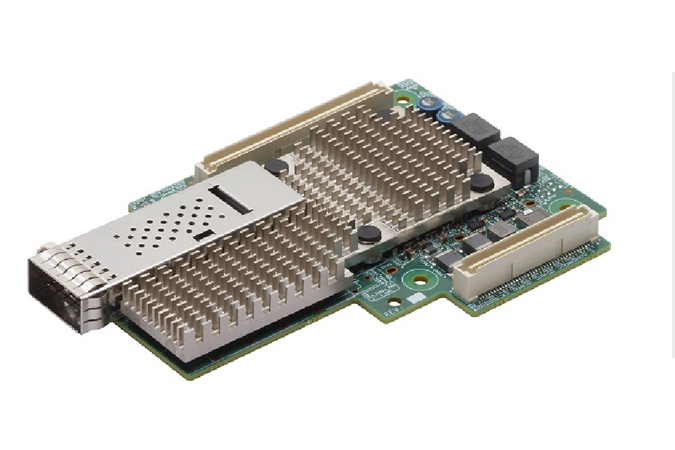

BROADCOM M1100G16 Single-port 100 Gb/s Ethernet Pci Express V3.0 X16 Ocp 2.0 Mezzanine Card.

Overview The BROADCOM® BCM957504-M1100G16 Is A Single-port 100 Gb/s Pci Express V3.0 X16 Network Adapter Card Designed To The Open Compute Project (ocp) Mezzanine Card Specification With A Qsfp56 Network Connector. The Adapter Is Designed To The Ocp Mezzanine V2.0 Specification As A Type 2 Adapter With The Board Outline Adhering To The Original V0.5 Dimensions. The Adapter Supports Qsfp56/qsfp28/qsfp+ Optical Modules And Copper Direct-attach Cables. The Card Uses The BROADCOM Bcm57504 100gbe Mac Controller With An Integrated 100gbe Sfi Transceiver.

Features
• Pluggable Media Interface, Which Is Compatible With A Qsfp56/qsfp28/qsfp+ Optical Transceiver Or A Copper Direct-attach Cable.

• Industry’s Most Secure Pcie Adapter Solution Leveraging BROADCOM’S Broadsafe® Technology

• Supports 50g Pam-4 And 25g Nrz Signaling.

• Fully Compliant With The Sff-8402 Standard.

• Pci Express V3.0 X16 Compliant.

• Sr-iov With Up To 1k Virtual Functions (vfs).

• Function-level Reset (flr) Support.

• Truflow™ Flow Processing Engine.

• Virtual Network Termination – Vxlan, Nvgre, Geneve, Gre Encap/decap.

• Vswitch Acceleration.

• Tunnel-aware Stateless Offloads.

• Dcb Support – Pfc, Ets, Qcn, Dcbx.

• Rdma Over Converged Ethernet (roce)

• Network Controller Sideband Interface (nc-si).

• Smbus 2.0.

• Mctp Over Smbus.

• Jumbo Frames Up To 9 Kb.

• Advanced Congestion Avoidance.

• Multiqueue, Netqueue, And Vmq.

• Ipv4 And Ipv6 Offloads.

• Tcp, Udp, And Ip Checksum Offloads.

• Large Send Offload (lso).

• Large Receive Offload (lro).

• Tcp Segmentation Offload (tso).

• Receive-side Scaling (rss).

• Transmit-side Scaling (tss).

• Vlan Insertion/removal.

• Interrupt Coalescing.

• Network Boot—pxe, Uefi.

• Iscsi Boot.

• Wake-on-lan (wol).

• Msi And Msi-x.

• Ocp 2.0 Fru Support.

• Conforms To The Ocp Mezzanine Card Design Specification V2.0 Type 2.

Applications Single-port 100gb/s, 50gb/s, 40gb/s, 25gb/s,
10gb/s Ethernet Adapter For Open Compute Platform Systems.

Condition : Brand New.
Availability : In Stock.
Our Warranty : 30 Days.
