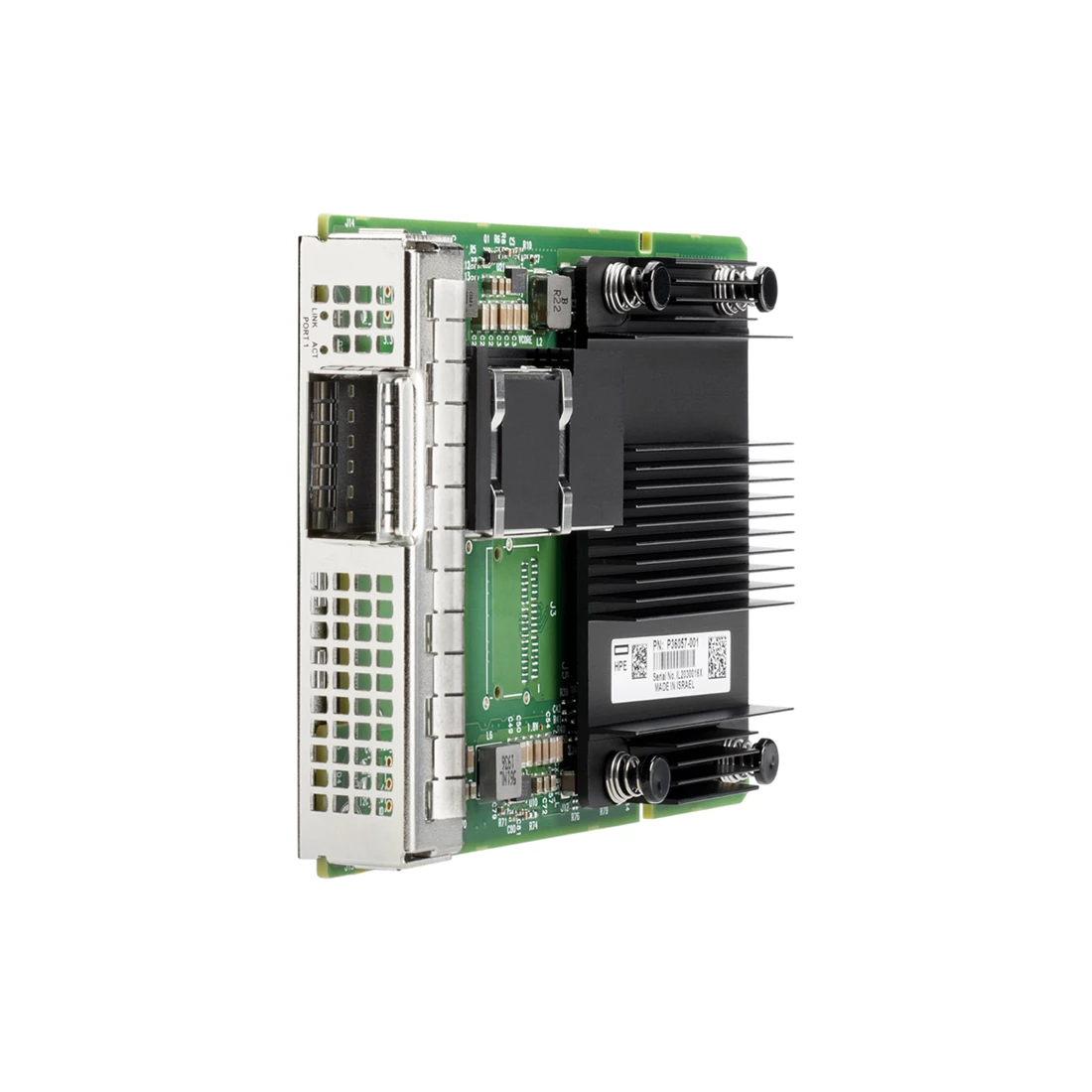

Overview Are You Looking For Extremely High-bandwidth And Very Low Latency Communications For Your HPE Apollo System And HPE Proliant Dl Rack Mount Server Families?
The HPE Hdr Infiniband And Ethernet Adapters Are Designed For Customers Who Deploy High Performance Computing (hpc) Systems With Their HPE Proliant Xl And HPE Proliant Dl Gen10 And Gen10 Plus Servers In The Data Center. The HPE Infiniband Hdr/hdr100 And Ethernet Adapters Are Available As Stand Up Cards Or In The Ocp 3.0 Form Factor, Equipped With 1 Port Or 2 Ports. Combined With Hdr Infiniband Switches, They Deliver Low Latency And Up To 200gbps Bandwidth, Ideal For Performance-driven Server And Storage Clustering Applications In Hpc And Enterprise Data Centers.
Features
Low-latency, High-bandwidth Infiniband Connectivity HPE Hdr Infiniband Adapters Deliver Up To 200gbps Bandwidth And A Submicrosecond Latency For Demanding Hpc Workloads.
The HPE Infiniband Hdr100 Adapters, Combined With Hdr Switches And Hdr Cables, Are Aimed At Simplified Infrastructure By Reducing The Number Of Required Switches For A Given 100gbps Infiniband Fabric
HPE Hdr Infiniband Adapters Are Supported On The HPE Apollo Xl And HPE Proliant Dl Gen10 And Gen10 Plus Servers.
Offloading Mechanisms HPE Hdr Infiniband Adapters Include Multiple Offload Engines That Speed Up Communications By Delivering A Low Cpu Overhead For Increasing Throughput.
HPE Hdr Infiniband Adapters Support Mpi Tag Matching And Rendezvous Offloads, Along With Adaptive Routing On Reliable Transport.
Technical Specifications
Form Factor : Ocp 3.0 Sff
Data Transfer Rate: Up To 200 Gb
Bus Type : Pcie 4.0 X16
Connector Type Qsfp56
Supported Cables Dac And Aoc
Total Number Of Ports : 1
Server Type Supported : HPE Proliant Dl Rack Mount Gen10 Plus Servers
Product Dimensions (metric) : 21.49 X 24.69 X 6.2 Cm
Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
