** Image may not exactly match product **

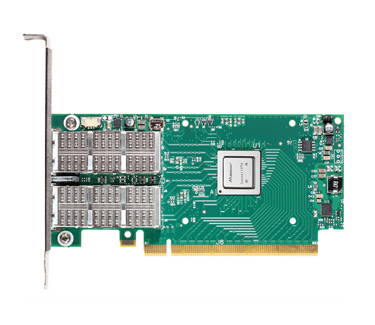

MELLANOX MCX455A-FCAT ConnectX-4 VPI adapter card FDR IB and 40GbE single-port QSFP28 PCIe3.0 x16 tall bracket ROHS R6

MELLANOX MCX455A-FCAT ConnectX-4 VPI adapter card FDR IB and 40GbE single-port QSFP28 PCIe3.0 x16 tall bracket ROHS R6

Part Number: MCX455A-FCAT
BRAND: MELLANOX | More NETWORKING from MELLANOX
$225.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

MELLANOX MCX455A-FCAT Connectx-4 Vpi Adapter Card Fdr Ib And 40gbe Single-port Qsfp28 Pcie3.0 X16 Tall Bracket Rohs R6

Technical Specifications:

Physical:

  • Size: 2.71 In. X 5.6 In. (68.90mm X 142.24 Mm) – Low Profile
  • Connector: Single Qsfp28 Infiniband (copper And Optical)

    Protocol Support:
  • Infiniband: Ibta V1.3auto-negotiationa : 1x/2x/4x Sdr (2.5gb/s Per Lane), Ddr (5gb/s Per Lane), Qdr (10gb/s Per Lane), Fdr10 (10.3125gb/s Per Lane), Fdr (14.0625gb/s Per Lane) Port
  • Ethernet: 56gbase-r4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 1000base-cx, 1000basekx, 10gbase-sr, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii
  • Data Rate:
    - Infiniband: Sdr/ddr/qdr/fdr
    - Ethernet: 1/10/25/40/56 Gb/s

    Power And Airflow
  • Voltage: 12v, 3.3v
  • Power - Cable Type - Fdr/56gbe:
    - Typical Power- Passive Cables - 13.51w
    - Maximum Power - Passive Cables - 16w
    - Maximum Power - 1.5w Active Cables - 17.7w

    Environmental:
  • Temperature:
    - Operational: 0°c To 55°c
    - Non-operational: -40°c To 70°c

  • humidity:
    - Operational: 10% To 85% Relative Humidity
    - Non-operational: 10% To 90% Relative Humidity
  • Altitude (operational): 3050m

    Condition: Refurbished.
    Availability: In Stock.
    Our Warranty: 90 Days.
