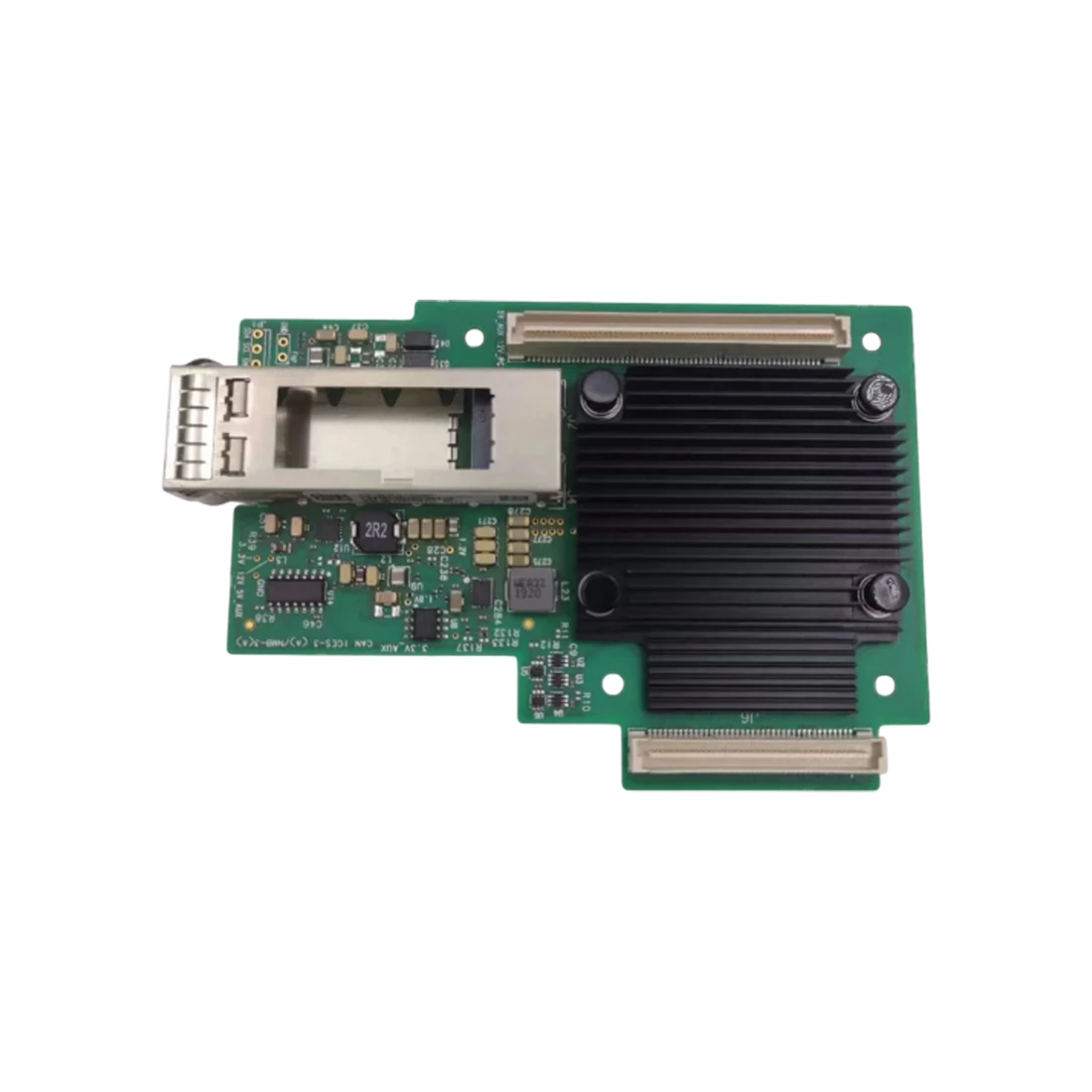

Mellanox MCX545A-CCUN ConnectX-5 EN network Interface Card For OCP2.0 Type 2 with Host Management 100GbE Single-port QSFP28 PCIe3.0 x16 UEFI Enabled No Bracket
MCX545A-CCUN
MCX545A-CCUN
MCX545A-CCUN
MCX545A-CCUN
MCX545A-CCUN

Mellanox MCX545A-CCUN ConnectX-5 EN network Interface Card For OCP2.0 Type 2 with Host Management 100GbE Single-port QSFP28 PCIe3.0 x16 UEFI Enabled No Bracket

Part Number: MCX545A-CCUN
BRAND: MELLANOX | More NETWORKING from MELLANOX
$135.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

MELLANOX MCX545A-CCUN Connectx-5 En Network Interface Card For Ocp2.0 Type 2 With Host Management 100gbe Single-port Qsfp28 Pcie3.0 X16 Uefi Enabled No Bracket

Specifications :

Physical :

  • Size: 3.07 In. X 4.33 In (78.00mm X 110.05mm)
  • Connector: Single Qsfp28 Ethernet (copper And Optical)

    Protocol Support:
  • Ethernet: 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4,40gbase-cr4,40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2,25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr,10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr
  • Data Rate: 1/10/25/40/50/100 Gb/s
  • Pci Express Gen3: Serdes @ 8.0gt/s (respectively), 16 Lanes (2.0 And 1.1 Compatible)

    Power And Cable Type:
  • Typical Power: 14.48w , Cable: Passive Cables
  • Maximum Power: 17.57w , Cable: Passive Cables
  • Maximum Power: 21.07w , Cable: 1.5w Active Cables
  • Maximum Power Available Through Qsfp28 Port: 3.5w
  • Voltage: 3.3vaux, 5vaux, 12v

    Environmental
  • temperature:
    - Operational: 0°c To 55°c
    - Non-operational: -40°c To 70°c
  • Humidity: 90% Relative Humidity
  • Altitude (operational): 3050m

    Condition: Refurbished.
    Availability: In Stock.
    Our Warranty: 90 Days.
