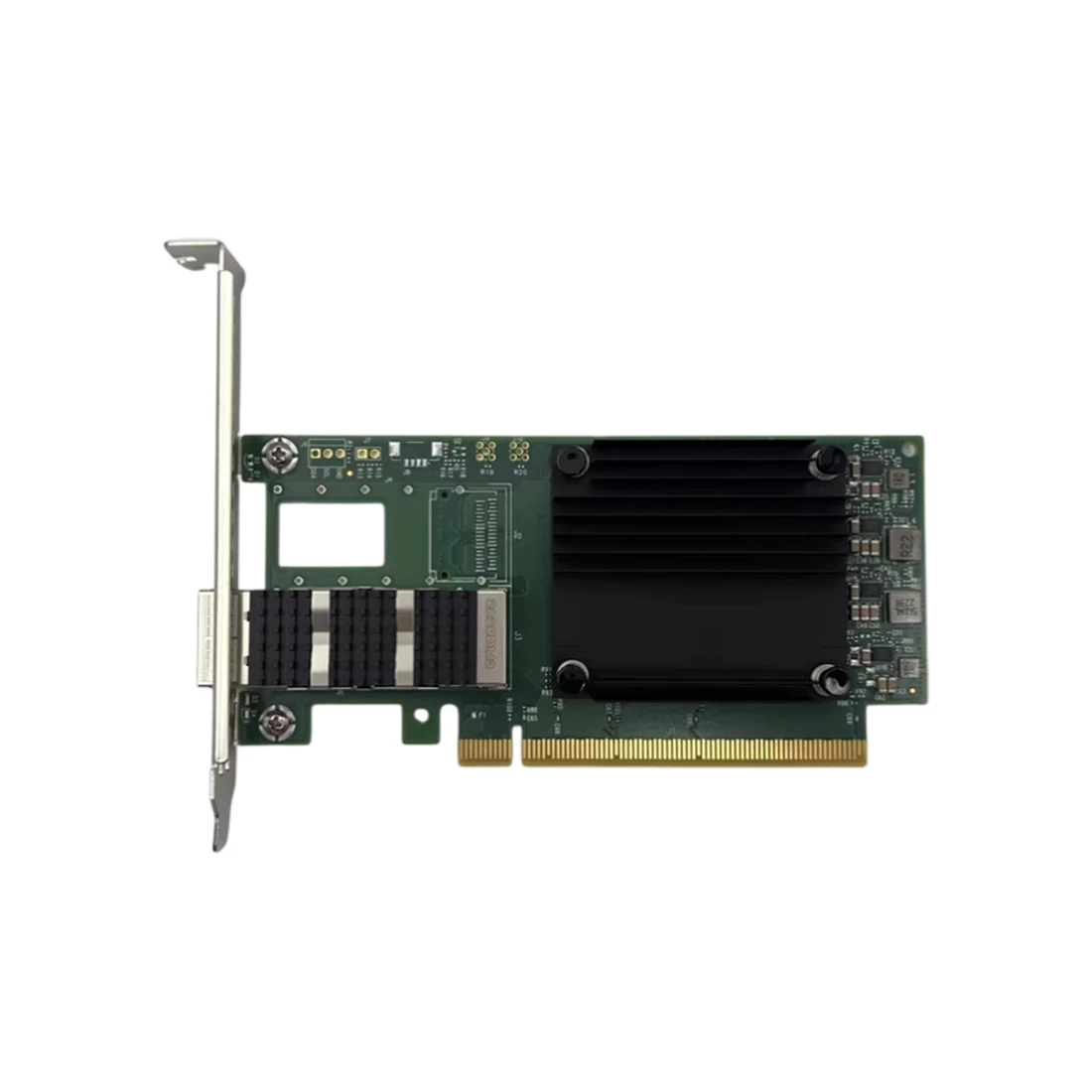

Mellanox MCX623105AN-VDAT ConnectX-6 Dx EN adapter card 200GbE Single-port QSFP56 PCIe 4.0 x16 No Crypto Tall Bracket
MCX623105AN-VDAT
MCX623105AN-VDAT
MCX623105AN-VDAT
MCX623105AN-VDAT
MCX623105AN-VDAT

Mellanox MCX623105AN-VDAT ConnectX-6 Dx EN adapter card 200GbE Single-port QSFP56 PCIe 4.0 x16 No Crypto Tall Bracket

Part Number: MCX623105AN-VDAT
BRAND: MELLANOX | More NETWORKING from MELLANOX
$1,530.00
Capacity: 1 PORT

Quantity :
 5% Discount on Checkout
    Extra 1% Discount on MobileApp
| Product Overview

MELLANOX MCX623105AN-VDAT Connectx-6 Dx En Adapter Card 200gbe Single-port Qsfp56 Pcie 4.0 X16 No Crypto

Specifications

Physical

Size: 5.59in. X 2.71in (142.00mm X 68.90mm)

Connector: Single Qsfp56 Ethernet (copper And Optical)

Data Rate: Ethernet - 1/10/25/40/50/100/200 Gb/s

Protocol Support

Ethernet: 200gbase-cr4, 200gbase-kr4, 200gbase-sr4, 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr, 10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr, 100gbase-cr2, 100gbase-kr2, 100gbase-sr2.

Pci Express Gen 3.0/4.0 Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)

Capabilities Crypto Disabled, Secure Boot Disabled

Power And Airflow

Voltage 3.3aux

Maximum Current 100ma

Typical Power Passive Cables - Tbd (pcie Gen 3.0) 16.94w (pcie Gen 4.0)

Maximum Power Passive Cables - Tbd (pcie Gen 3.0) 24w (pcie Gen 4.0)

Maximum Power Available Through Qsfp56 Port 5w (each Port)

Airflow Requirements

  • Passive Cables - 600lfm (hot Aisle - Heatsink To Port)
  • Active 4.55w Cable - 950lfm (hot Aisle - Heatsink To Port).

    Environmental

    Temperature
  • Operational: 0°c To 55°c
  • Non-operational: -40°c To 70°c

    Humidity
  • Operational: 10% To 85% Relative Humidity
  • Non-operational: -10% To 90% Relative Humidity

    Altitude (operational) 3050m

    Regulatory Rohs Compliant

    Condition: Brand New
    Availability: In Stock.
    Our Warranty: 90 Days.
